Ratnaparkhi Electronics Ind. Pvt. Ltd.

List Of Spares

Place your order :

Sr. No.	Item Name	Item No.	Disc	Price

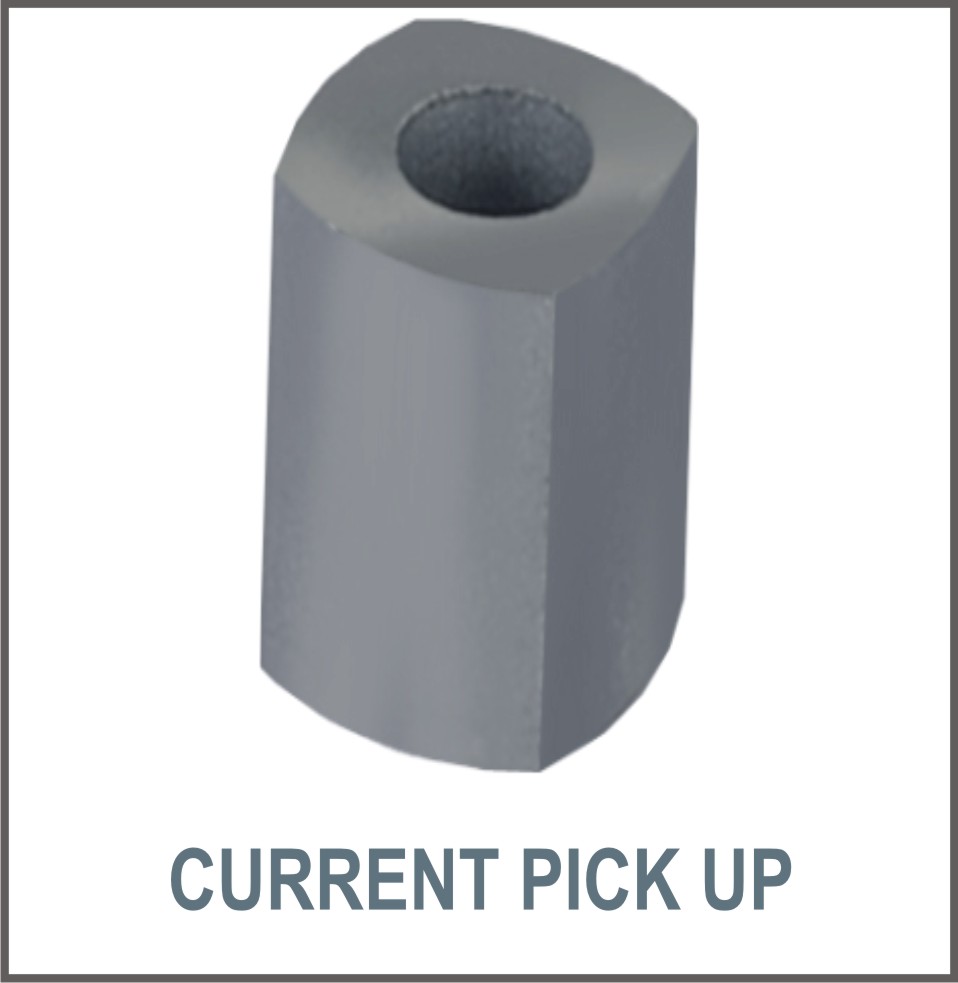

1	tc current pickup 11.9 x 11.9 x 19 mm	795	CURRENT PICKUP 19 MM	800.00

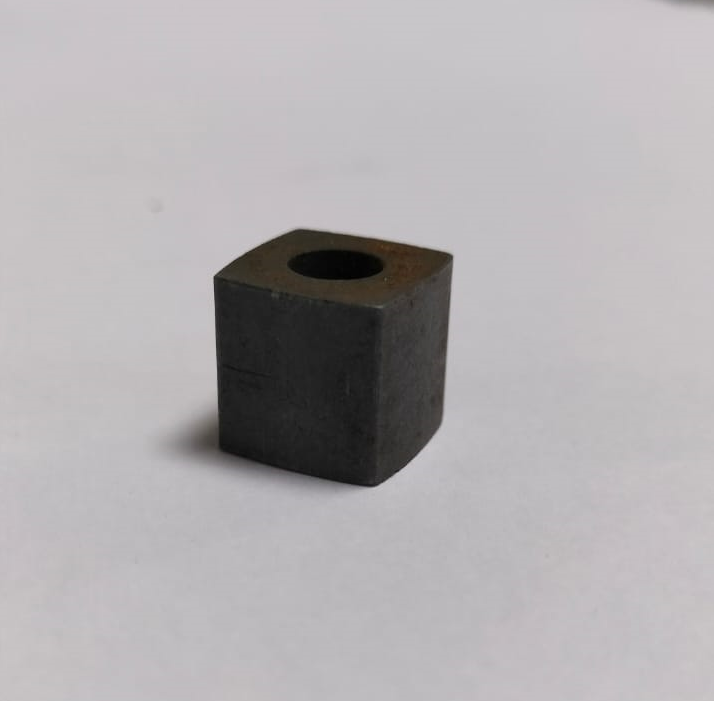

2	TC CURRENT PICKUP 12 MM ( NOS	796	TC CURRENT PICKUP 12 MM ( NOS )	800.00

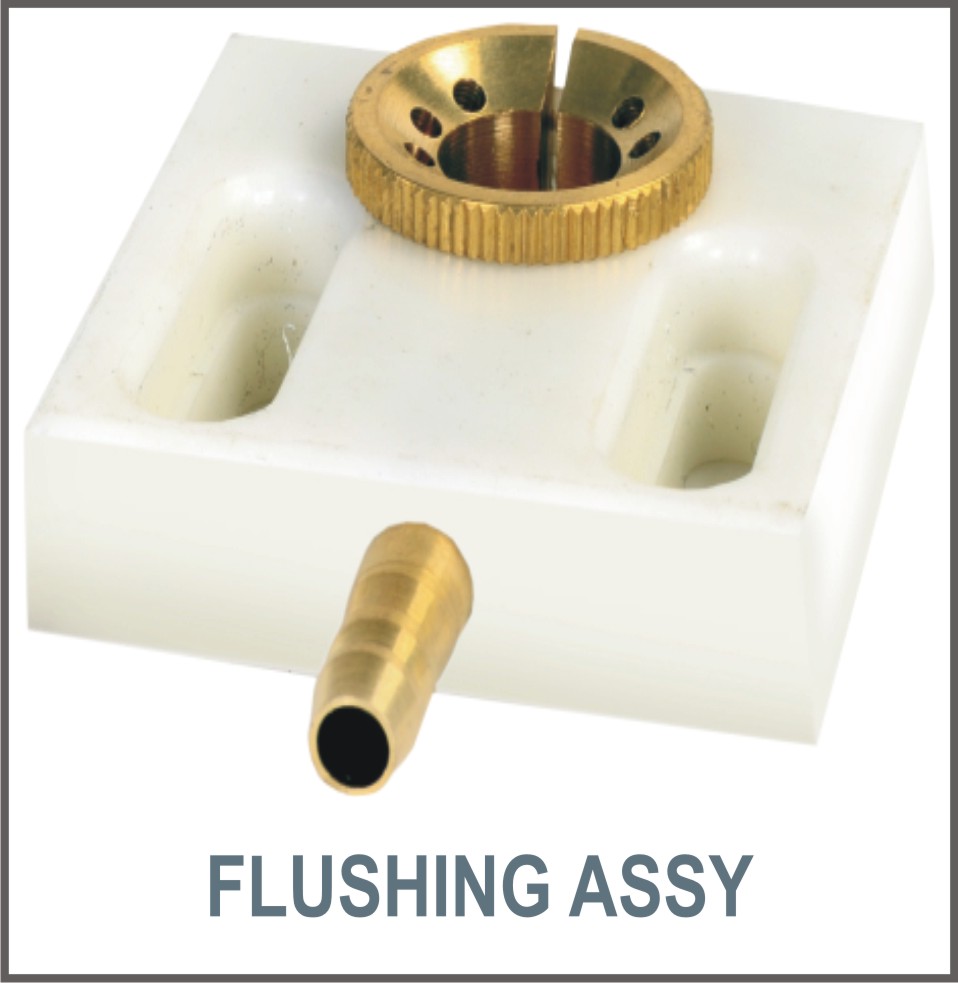

3	FLUSHING ASSY 20 MM DIA ( NOS )	807	FLUSHING ASSY 20 MM DIA ( NOS )	6500.00
4	MOLY WIRE 0.18 MM (2000 MTRS )	1142	MOLY WIRE 0.18 MM (2000 MTRS )	9800.00
5	MOLY WIRE 0.25 MM	1143	MOLY WIRE 0.25 MM ( MTRS )	5.25

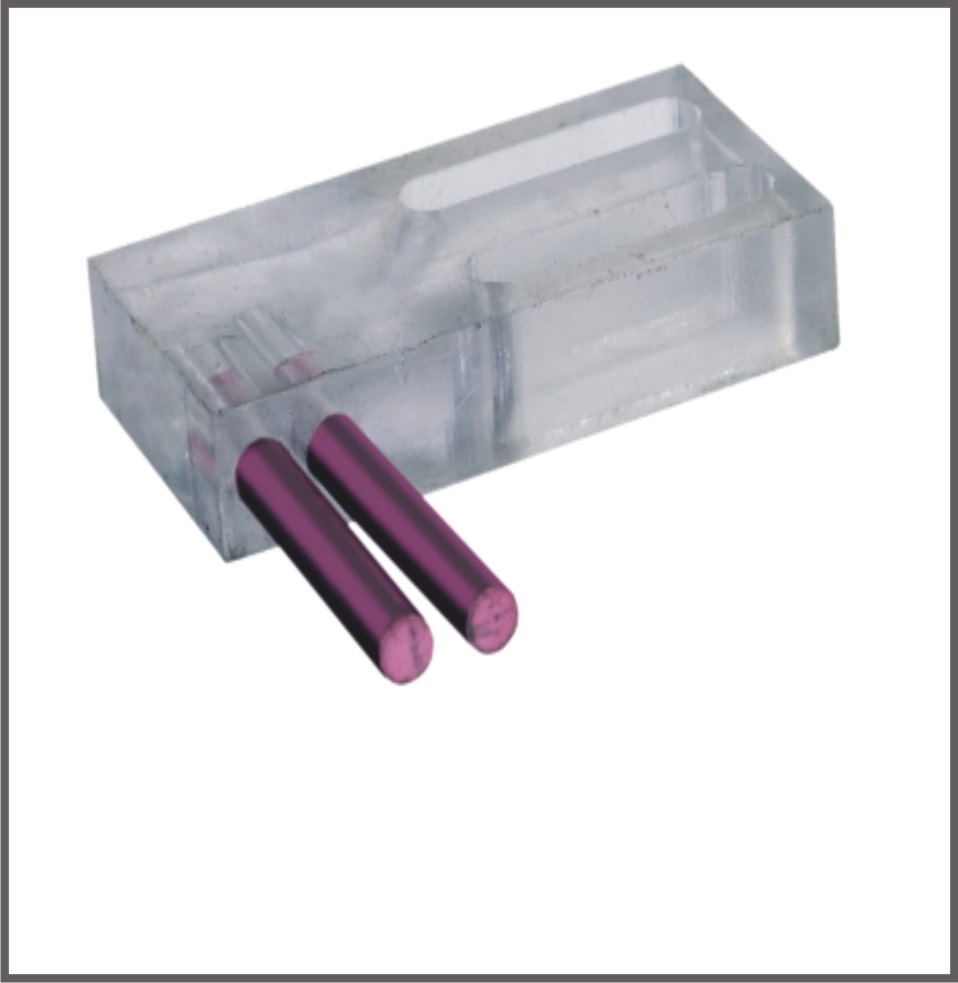

6	DUAL WIRE GUIDE PIN	581	DUAL WIRE GUIDE PIN	400.00

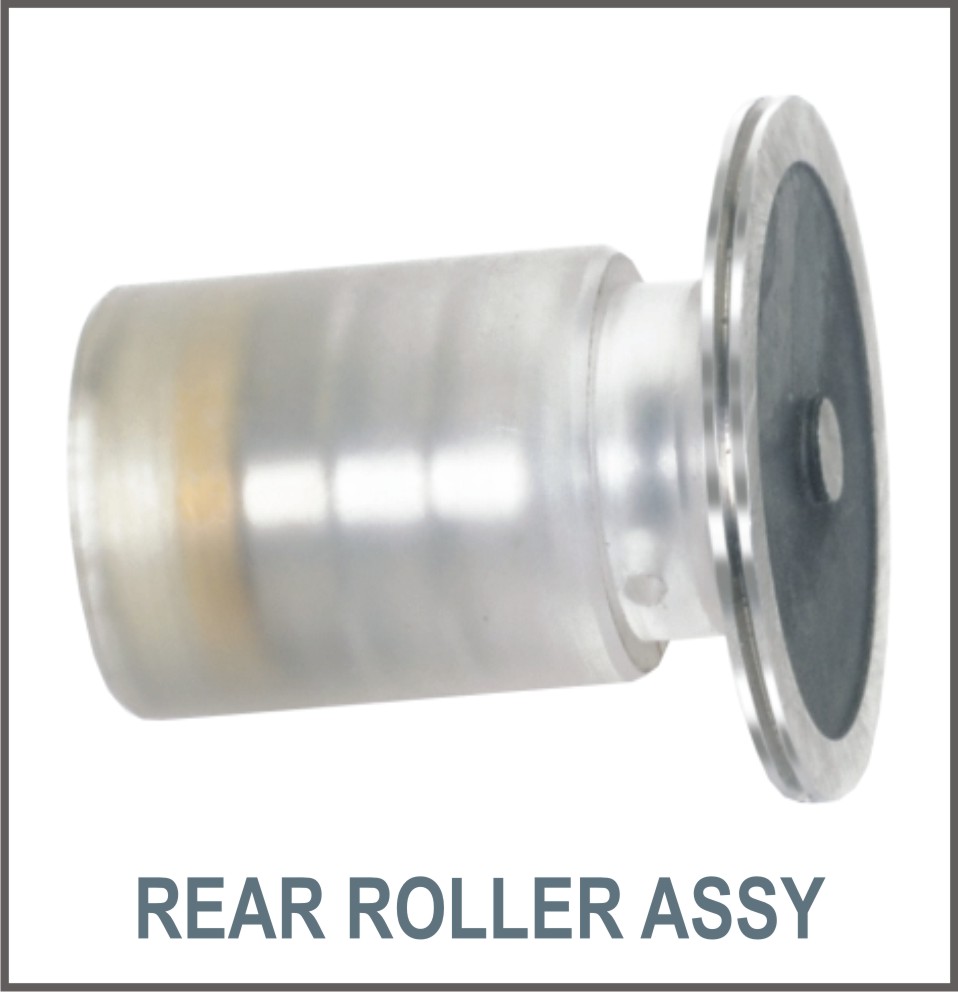

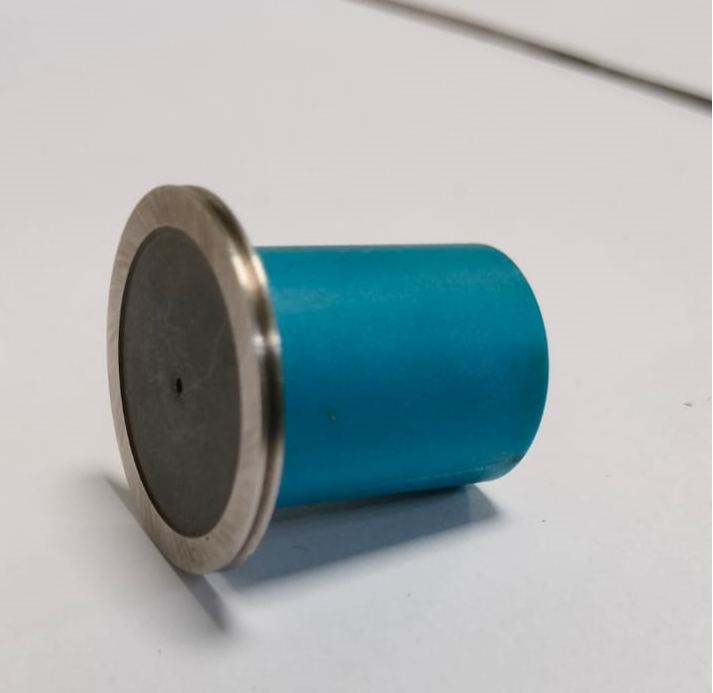

7	REAR ROLLER ASSLY COMP B2B	1147	REAR ROLLER ASSLY COMP B2B	2500.00

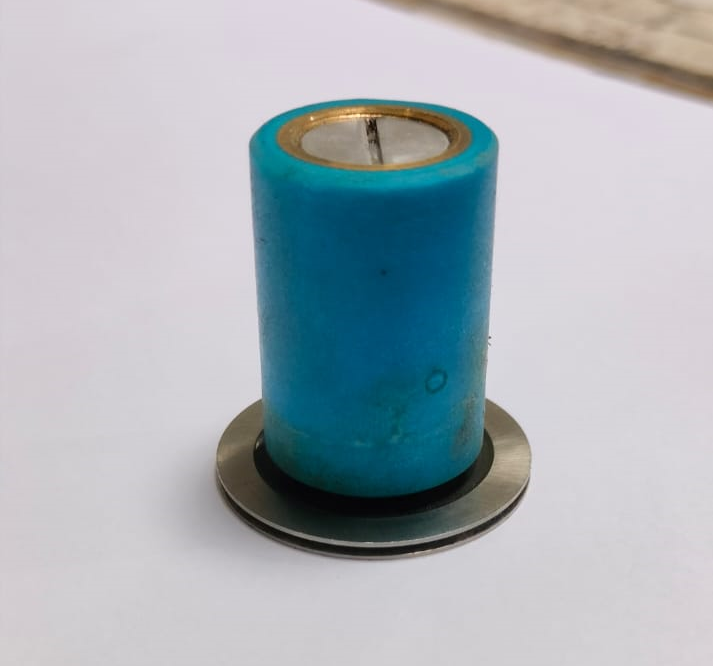

8	REAR ROLLER ASSLY COMP B3B	1148	REAR ROLLER ASSLY COMP B3B	3000.00

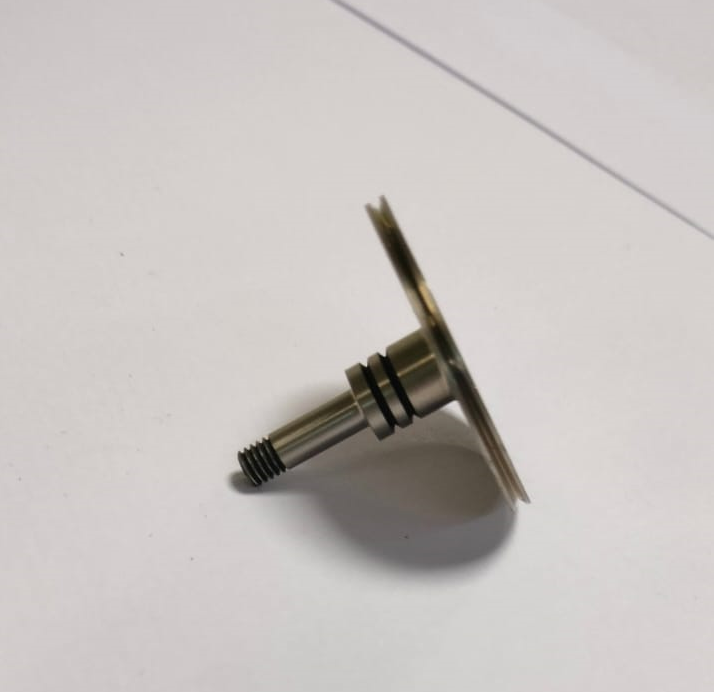

9	REAR ROLLER ONLY 2B	1151	REAR ROLLER ONLY 2B	1100.00

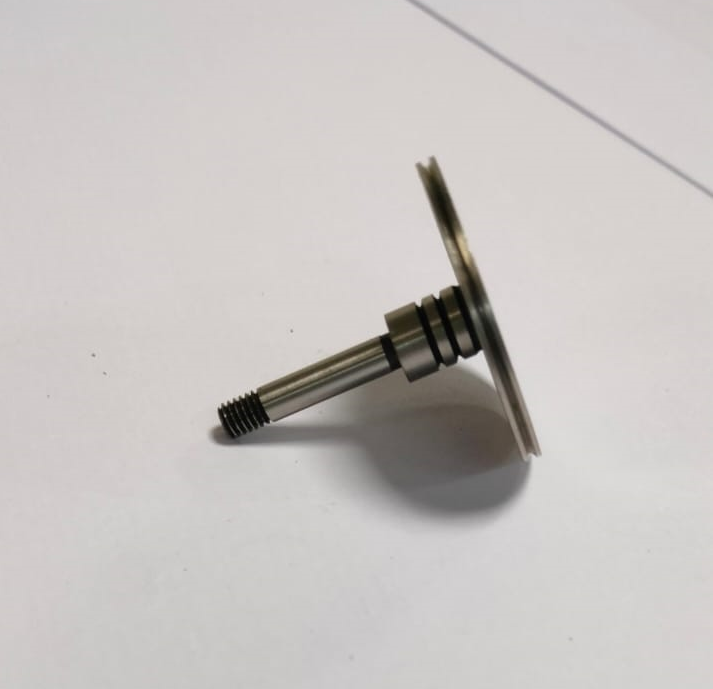

10	REAR ROLLER ONLY 3B	1152	REAR ROLLER ONLY 3B	1200.00

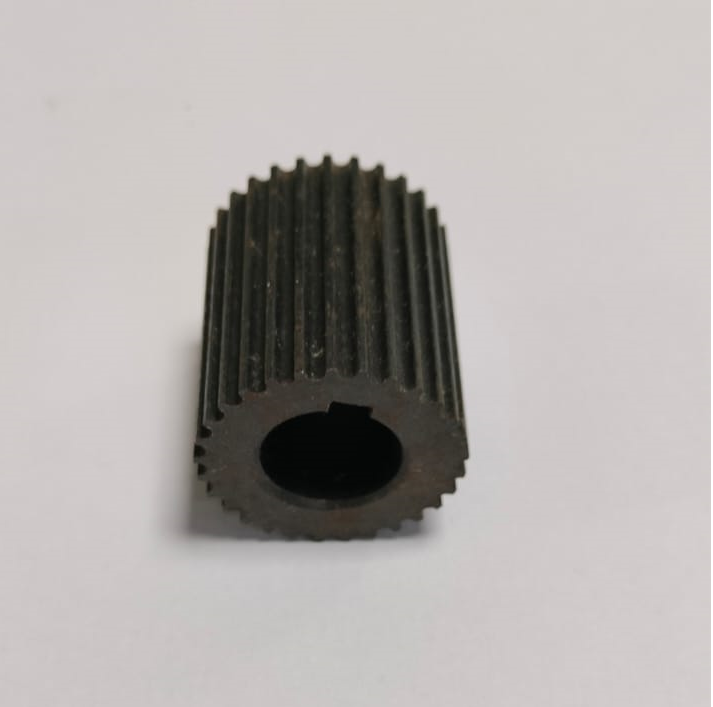

11	WIREFEED ASSELY SMALL GEAR 32 TEETH	1167	WIREFEED ASSELY SMALL GEAR 32 TEETH	1800.00
12	WIREFEED ASSELY SMALL GEAR 126 TEETH	1168	WIREFEED ASSELY SMALL GEAR 126 TEETH	3600.00

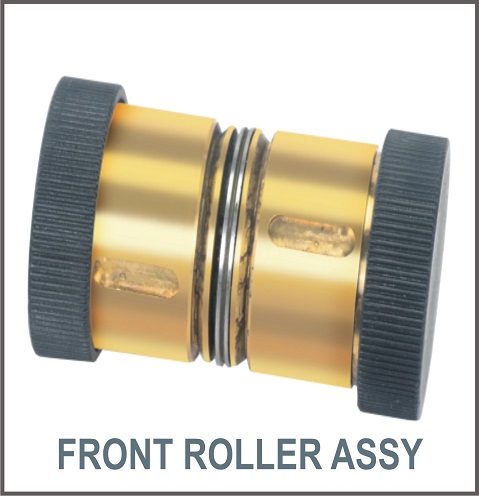

13	FRONT ROLLER ASSEMBLY COMPLETE 32 MM ( NOS. )	782	FRONT ROLLER ASSEMBLY COMPLETE 32 MM ( NOS. )	4800.00

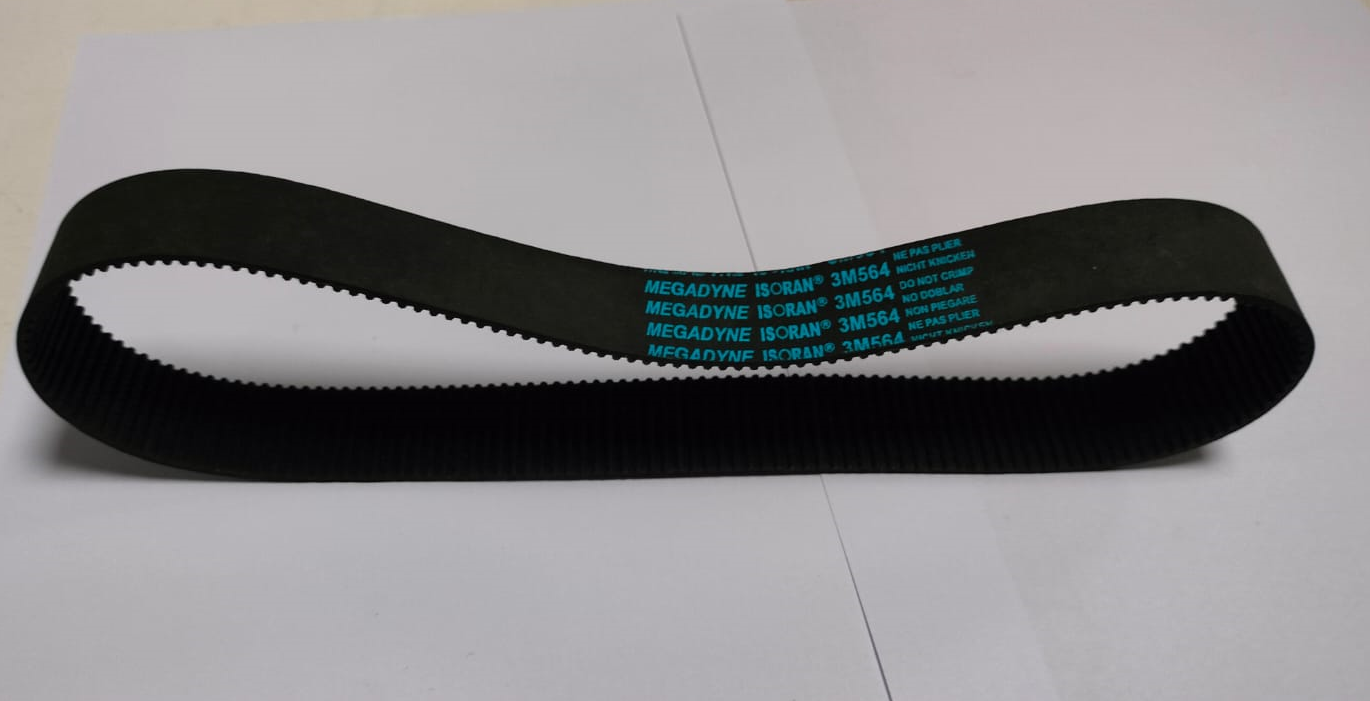

14	WIRE FEED ASSELY TIMING BELT 564 X 25 X 3	1726	WIRE FEED ASSELY TIMING BELT 564 X 25 X 3	1055.00

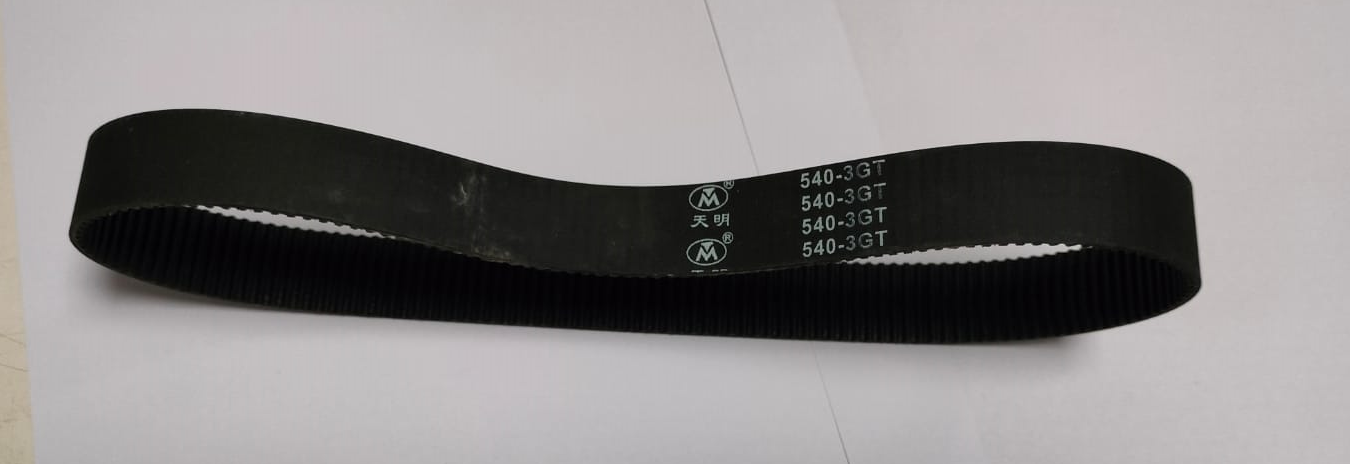

15	WIRE FEED ASSELY TIMING BELT 540 X 25 X 3	1727	WIRE FEED ASSELY TIMING BELT 540 X 25 X 3	1055.00
16	TX CONTROL 90111/1	1840	TX CONTROL 90111/1	7500.00
17	TX CONTROL 90111/2	1841	TX CONTROL 90111/2	2500.00
18	TX CONTROL 90111/3	1842	TX CONTROL 90111/3	1500.00

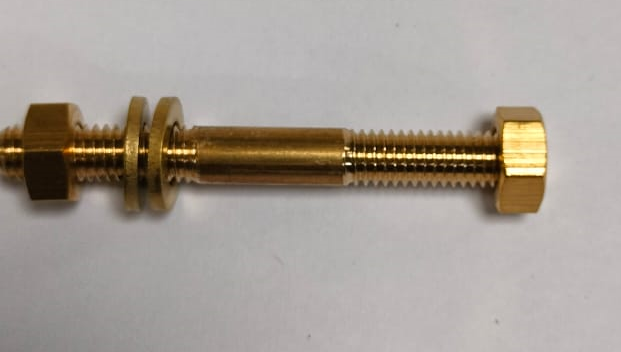

19	BRASS STUD WITH NUT 55 MM ( NOS )	799	BRASS STUD WITH NUT 55 MM ( NOS )	150.00
20	PF TANK FOR NXG	1876	PF TANK FOR NXG	25000.00

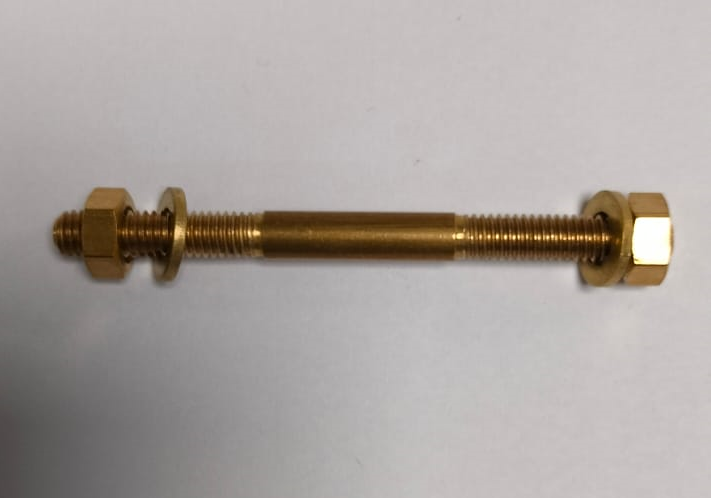

21	BRASS STUD WITH NUT 75 MM ( NOS )	800	BRASS STUD WITH NUT 75 MM ( NOS )	200.00
22	TX OVUV	1904	TX OVUV	4500.00

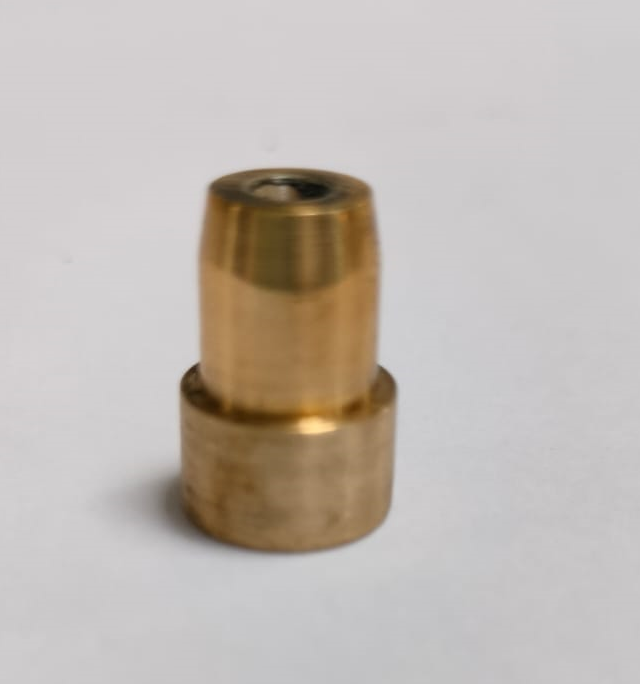

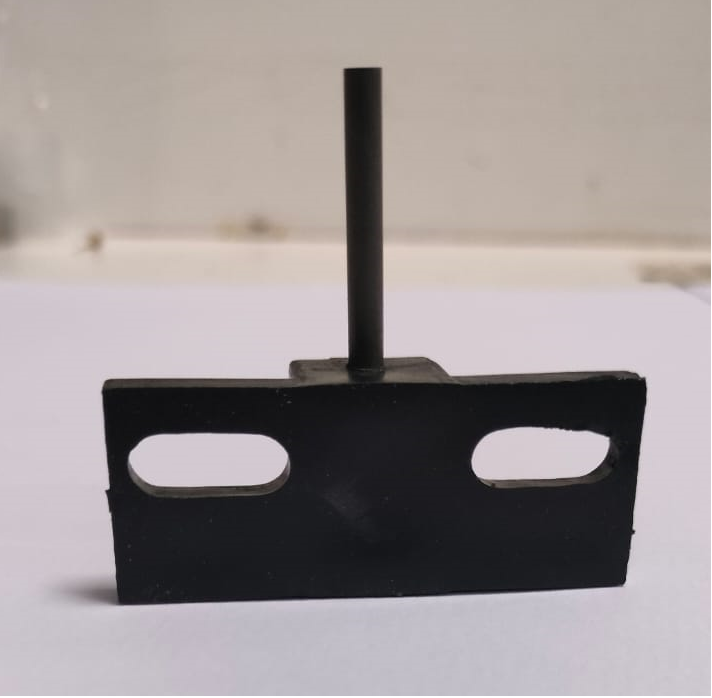

23	SINGLE WIRE GUIDE PIN	2013	SINGLE WIRE GUIDE PIN	300.00

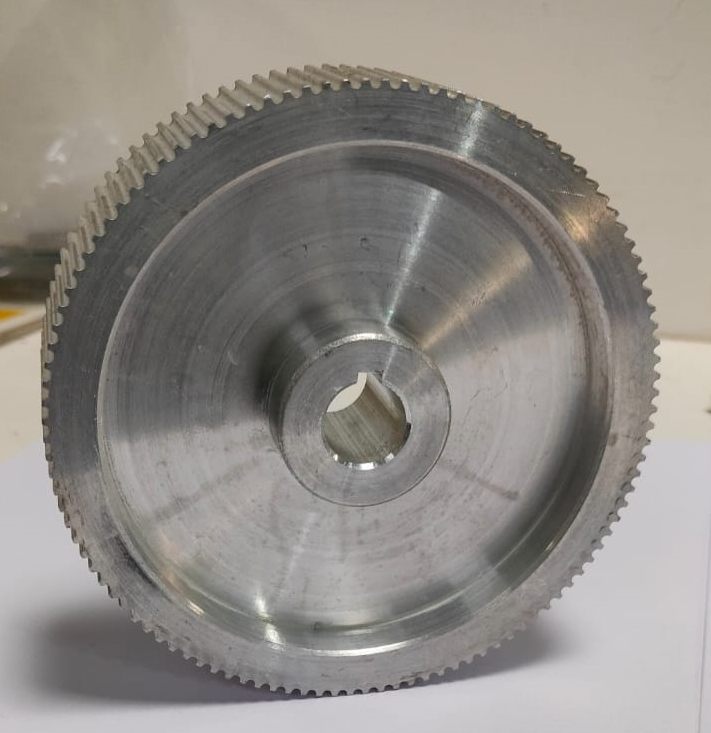

24	WIRE FEED ASSY BIG GEAR 110 TEETH ( NOS )	804	WIRE FEED ASSY BIG GEAR TEETH ( NOS )	0.00
25	BELLOW FOR WATER GAURD 130 MM ( NOS )	806	BELLOW FOR WATER GAURD 130 MM ( NOS )	2500.00

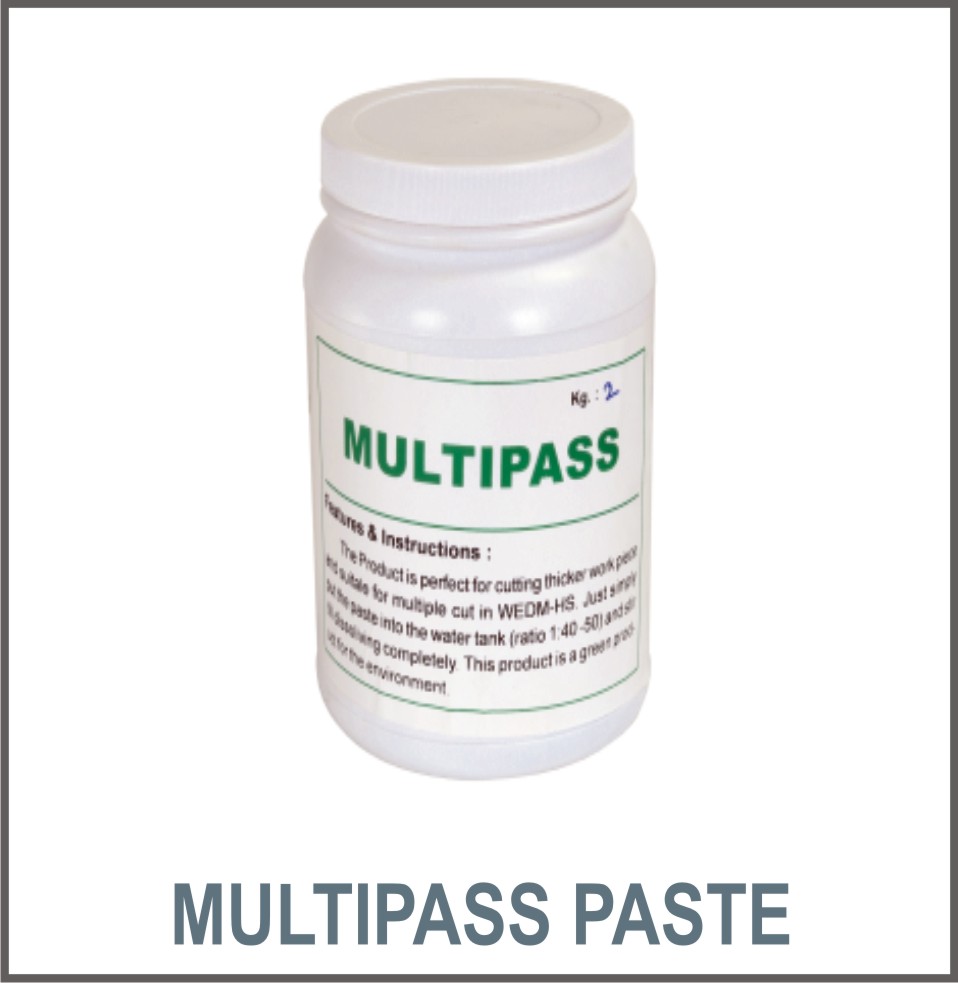

26	SS COOLANT ( MULTIPASS PASTE ) MIN 2 KG PACKING	811	SS COOLANT ( MULTIPASS PASTE ) MIN 2 KG PACKING	1950.00

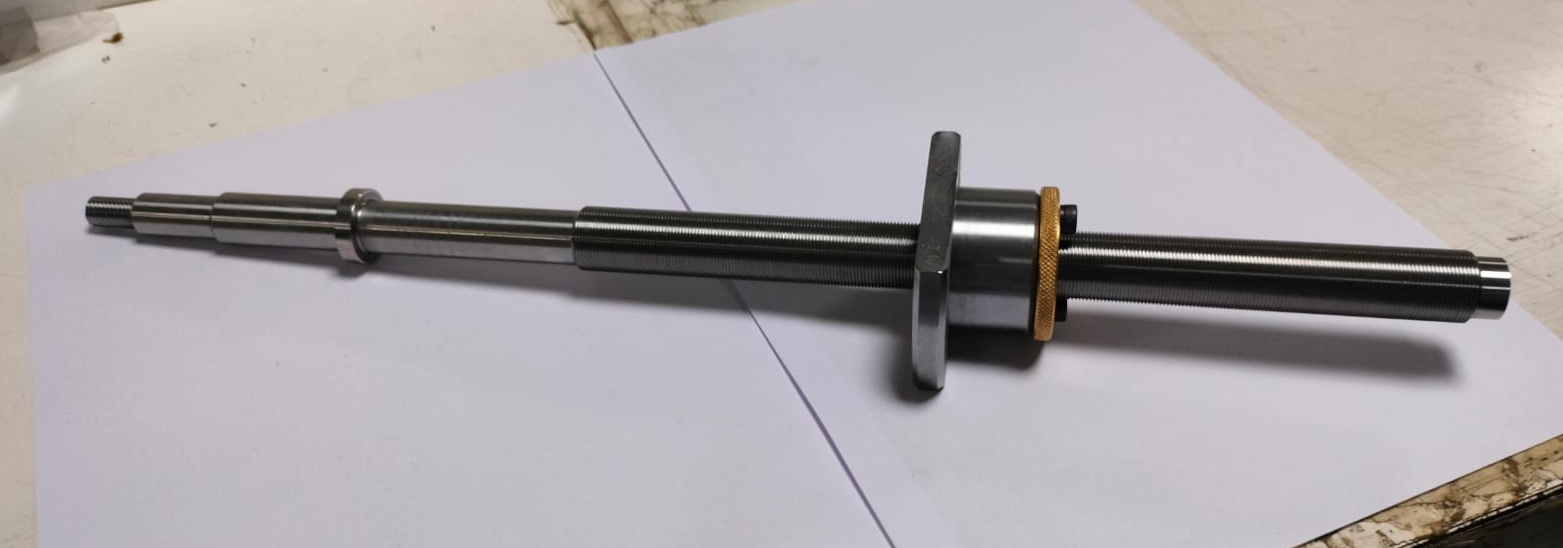

27	LEAD SCREW AND LEAD NUT WIRE DRUM EZEECUT	2382	LEAD SCREW AND LEAD NUT WIRE DRUM EZEECUT	16500.00
28	BRASS WIRE0.25 MM SOFT - AX (ZINC COATED)	2601	QTY REQUIRED OLY 3.5 KG RATIO	1550.00
29	WIRE PLAIN HARD 0.25 MM BRASS ( 3.5 KG PACKING )	813	WIRE PLAIN HARD 0.25 MM BRASS ( 3.5 KG PACKING )	4200.00
30	COOLNT OIL FOR WIRECUT MACHINE	2623	QTY 25 LTR RATIO	275.00

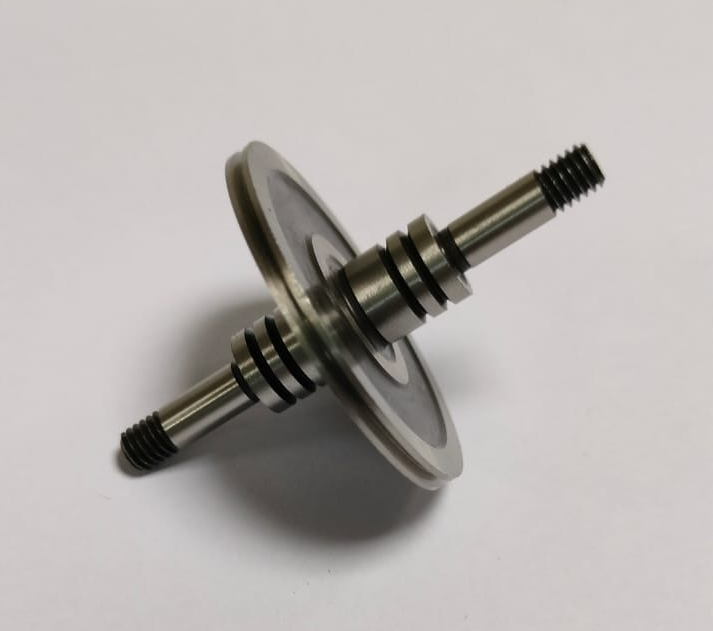

31	FRONT ROLLER ASSEMBLY COMPLET 40 MM ( 1 NOS )	1137	ROLLER WITH 40 MM DIA	6500.00

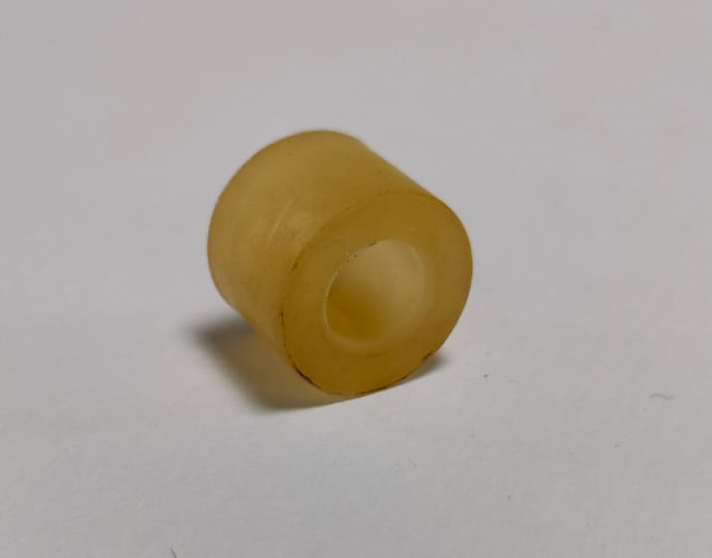

32	BUSH FOR WIRE FEED COUPLING	2760	BUSH FOR WIRE FEED COUPLING	100.00
33	FRONT ROLLER ONLY 40 MM (1 NOS )	1138	FRONT ROLLER ONLY 40 MM (1 NOS )	2000.00

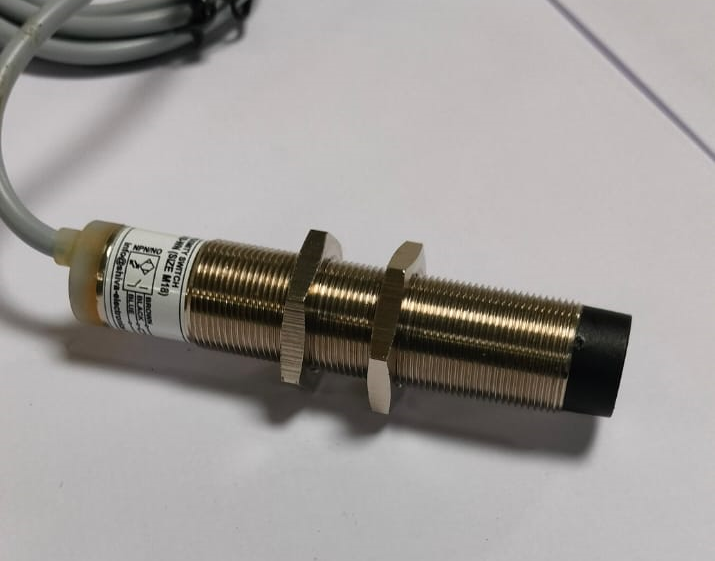

34	SWITCH PROXIMITY LIMIT WIRE FEED	2778	SWITCH PROXIMITY LIMIT WIRE FEED	4500.00
35	REAR ROLLER ASSEMBLY COMPLETE 3 BEARING ACARYLIC TYPE (1 NOS )	1139	3 BEARING ACARYLIC TYPE	2000.00
36	REAR ROLLER ASSEMBLY COMPLETE 2 BEARING ACARYLIC TYPE (1 NOS )	1140	2 BEARING ACARYLIC TYPE	2000.00
37	FRONT ROLLER ONLY 50 MM ( NOS )	2951	FRONT ROLLER ONLY 50 MM ( NOS )	3000.00
38	FRONT ROLLER ASSEMBLY COMPLETE 50 MM ( NOS )	2952	FRONT ROLLER ASSEMBLY COMPLETE 50 MM ( NOS )	6000.00
39	DRIVE FOR U-V AXIS	4181	DRIVE FOR U-V AXIS DRIVE BH-MSD-4.5 A V	9500.00
40	WIRE GUIDE 0.19 MM FOR NXG ( NOS )	5965	WIRE GUIDE 0.19 MM FOR NXG ( NOS )	4500.00
41	S - COOLANT TYPE 2 ( KGS ) 25 KG PER DRUM	6294	S - COOLANT TYPE 2 ( KGS ) 25 KG PER DRUM	21250.00
42	FRONT ROLLER ASSEMBLY COMPLETE 42 MM ( NOS )	7022	FRONT ROLLER ASSEMBLY COMPLETE 42 MM ( NOS )	6000.00

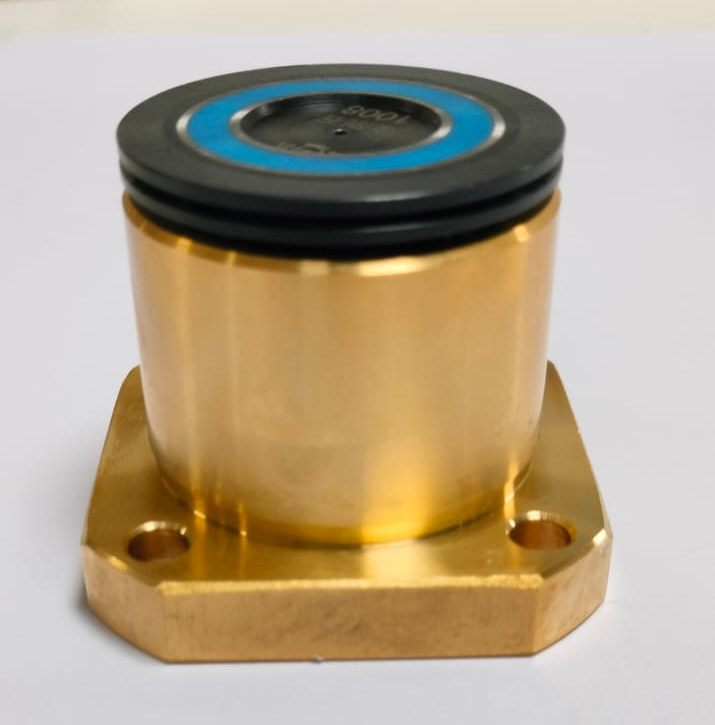

43	SINGLE ROLLER ASSEMBLY DIA 40 MM SQUARE TYPE FOR PRO-1 ( NOS )	7383	SINGLE ROLLER ASSEMBLY DIA 40 MM SQUARE TYPE FOR PRO-1 ( NOS )	6000.00
44	TIMING BELT 5505M15MM ( NOS )	7584	TIMING BELT 5505M15MM ( NOS )	1200.00
45	FRONT ROLLER ONLY 42 MM ( NOS )	8196	FRONT ROLLER ONLY 42 MM ( NOS )	2500.00
46	FRONT ROLLER ONLY 40 MM SINGLE SHAFT	8197	FRONT ROLLER ONLY 40 MM SINGLE SHAFT	3500.00
47	Front roller only 32 mm	7887	front rooler only 32 mm with shaft at both end	1500.00
