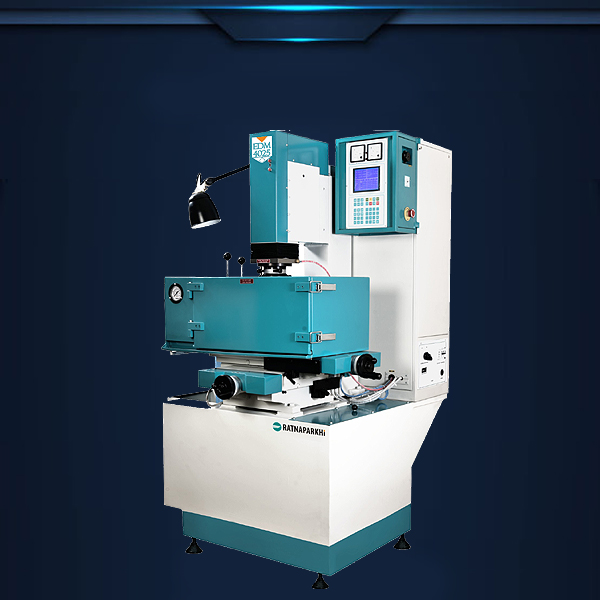

ZNC Model

Download Brochure

Video Link

Brief Information

Features
  • Programable Z axis and EDM Parameters
  • In built 3 axis DRO
  • Higher MRR With Eco pulse
  • MOSET for superior finish
  • Over voltage / Under voltage protection
  • Impulse flushing
Specifications
ParameterDetails
Work Tank Dimension (mm)650 X 430 X 300
Table Size (mm)400 X 250
X Axis Travel (mm)200
Y Axis Travel (mm)150
Z Axis Travel (mm)150
Max Job Height (mm)160
Max Electrode Weight(Kg.)35
Machine Z AxisLead Screw
Controller Z Axis DC Servo
Over All Dimensions(WxDxH) (mm)1500 x 1450 X 1850
Max job Weight (Kg.)100
ParameterDetails
Work Tank Dimensions (mm)800 x 530 x 300
Table Size (mm)550 x 300
X Axis Travel (mm)280
Y Axis Travel (mm)200
Z Axis Travel (mm)250
Max Job Height (mm)210
Max. Electrode Weight (Kg.)50
Controller Z- AxisDC Servo
Overall Dimensions (WxDxH)1650 x 2175 x 2150

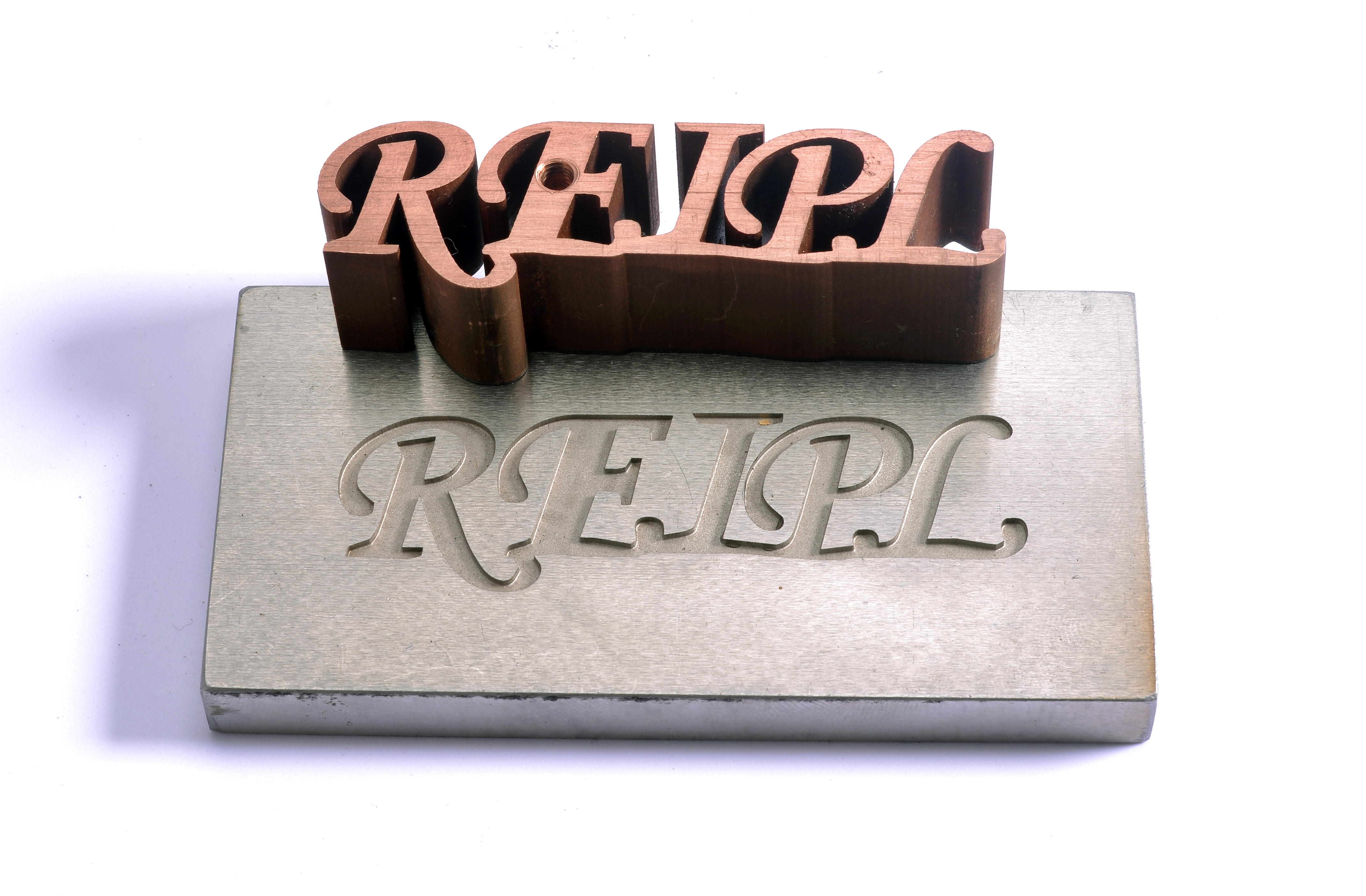

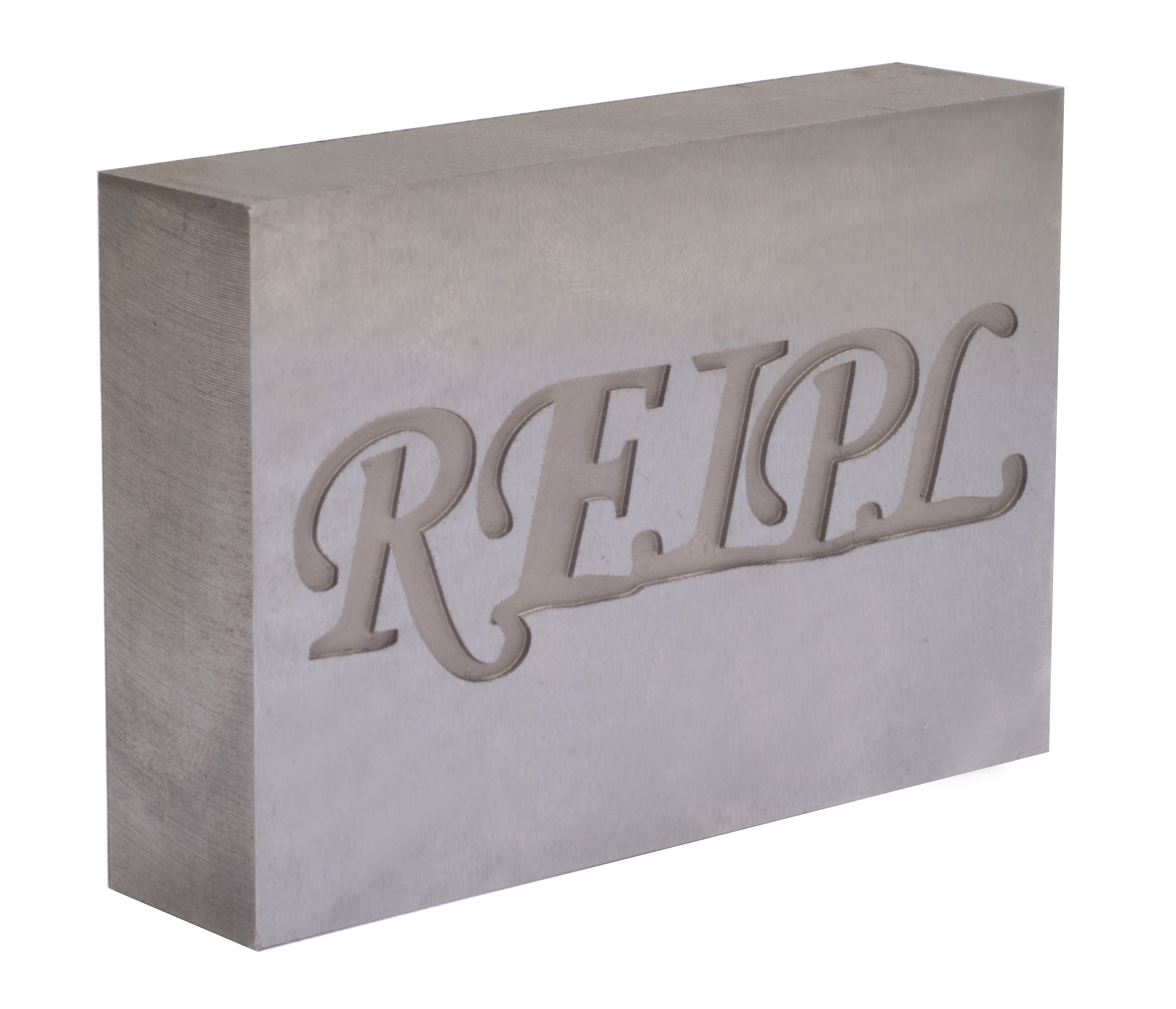

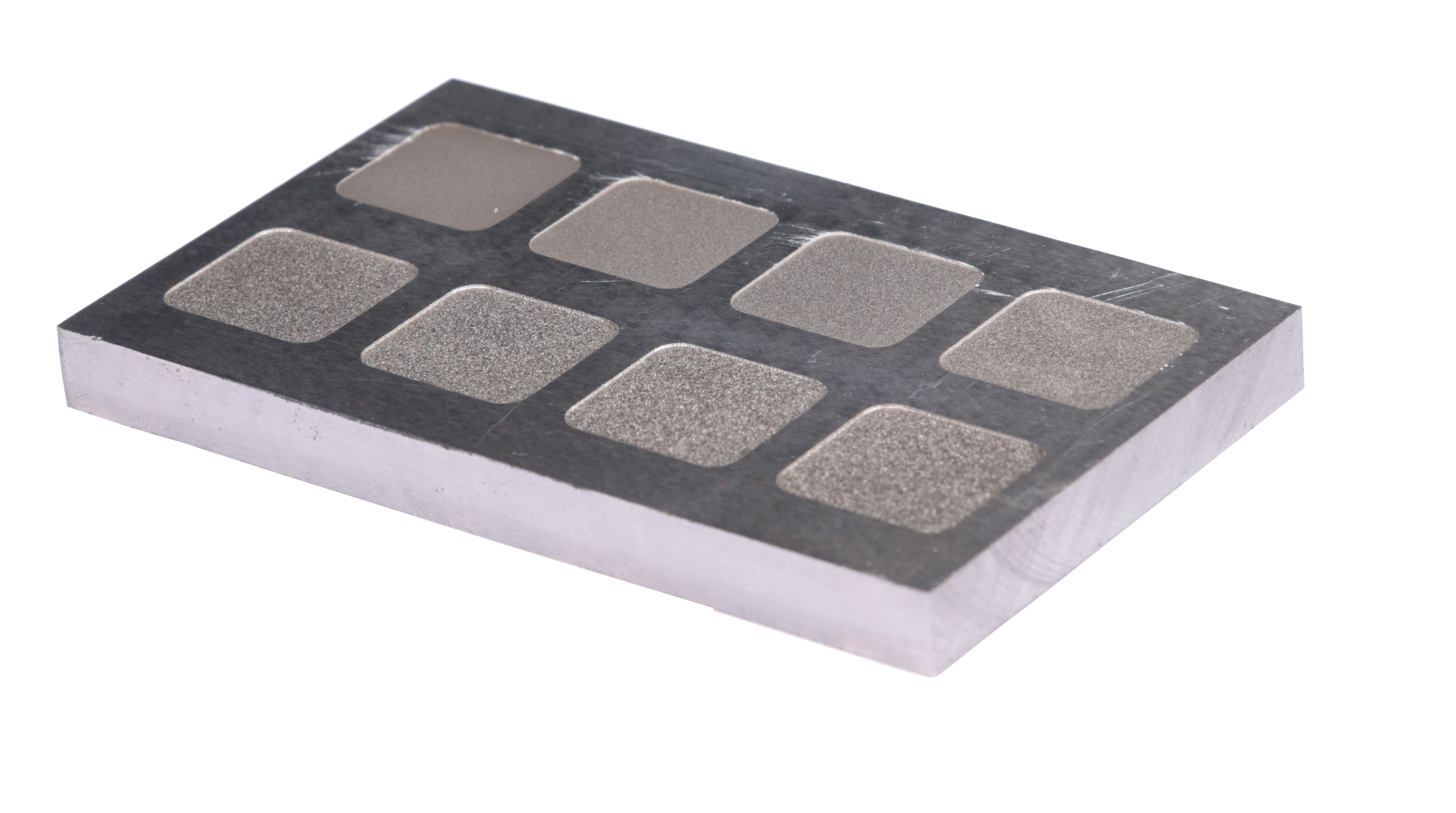

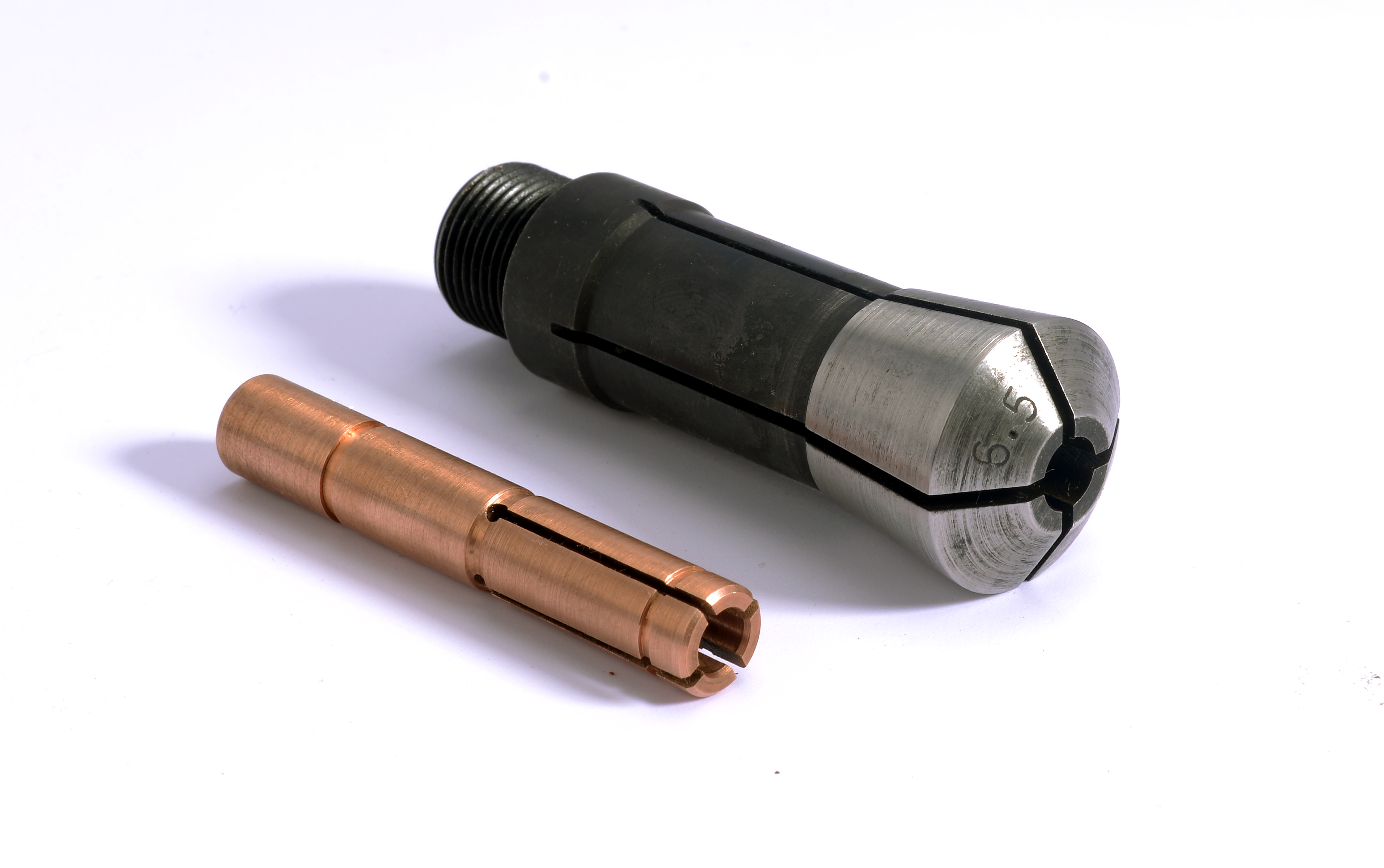

Sample Jobs
