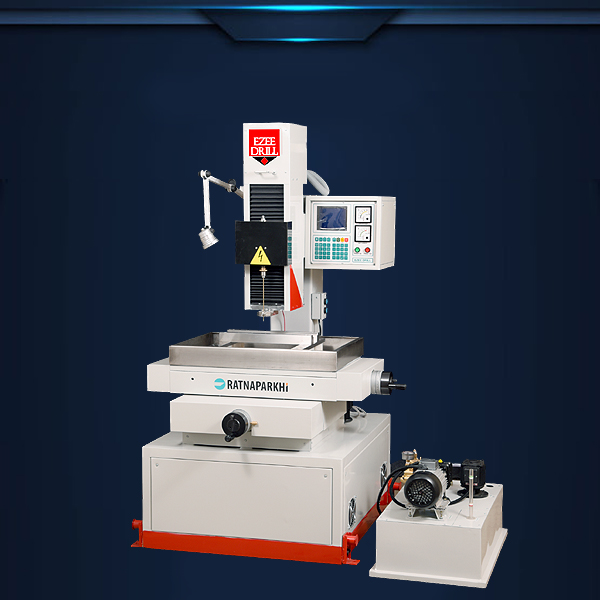

EZEE DRILL

Download Brochure

Video Link

Brief Information

Features
  • Small hole drilling in any hard metal
  • Both brass & copper electrode tubes can be used
  • Large drilling range
  • Soft water is used as dielectric fluid
  • Stainless still work table ensures longer life
  • Precision drive control
  • Compact footprint
  • Z Axis rapid speed
  • PCD and Array Programing
  • Array and PCD Programming.
Specifications
ParameterDetails
SS Work tray dimension 700 X 470 X 83
Work Table 400 X 400
X & Y Axis travel300 X 200
Z Axis travel (Z + W)300 + 250
Max electrode length (mm) 400
Size of electrode dia (mm)0.3 to 3.0
Max drill depth (mm)250
Max coolant pressure6 MPA - 60 kg/cm
Max weight of the work piece (Kg.)300 Kg.
Work tank (mm)690 X 470 X 83
Net weight (Kg.)750 Kg.
Connected load 2 KVA
Input power supply 3 phase , Ac 415 V, 50 Hz
Max machining current 20 amp
Machine foot print (mm)1950 X 2200 X 2300
Job material Brass / Steel / Carbide
Dielectric Soft water / DM Water

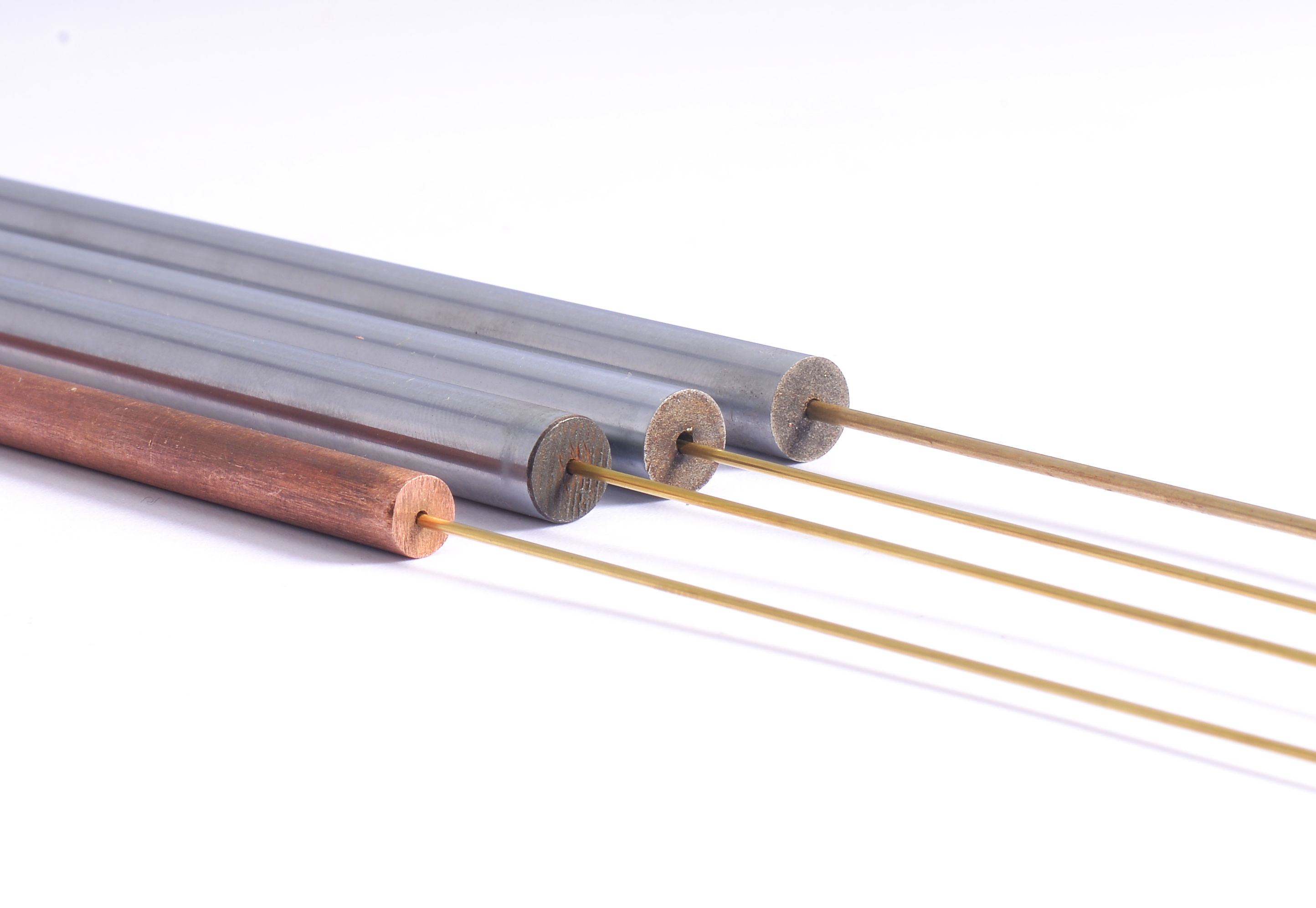

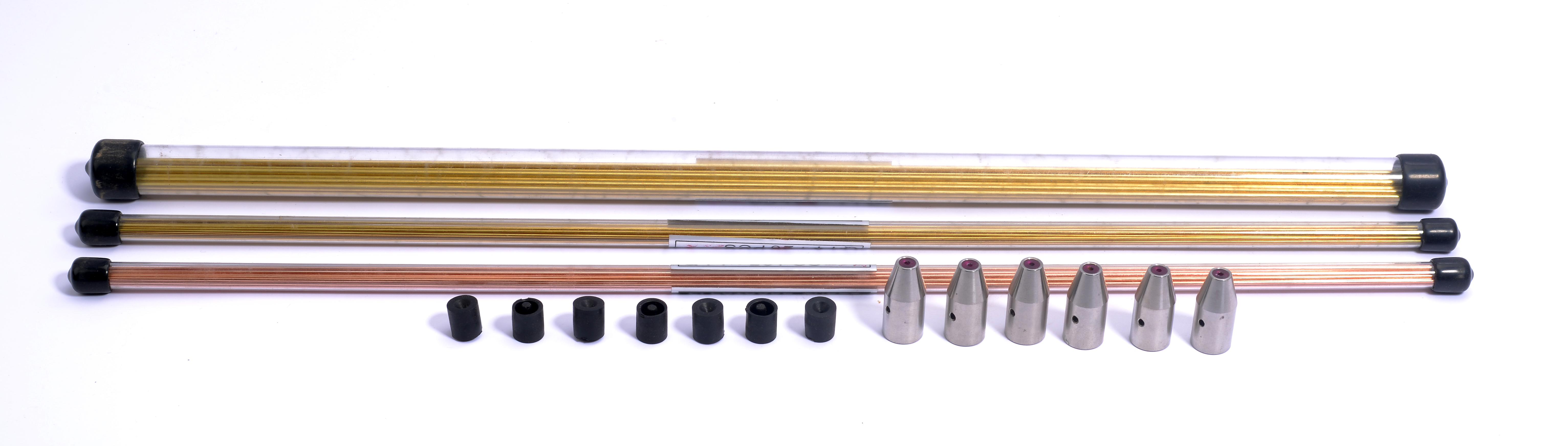

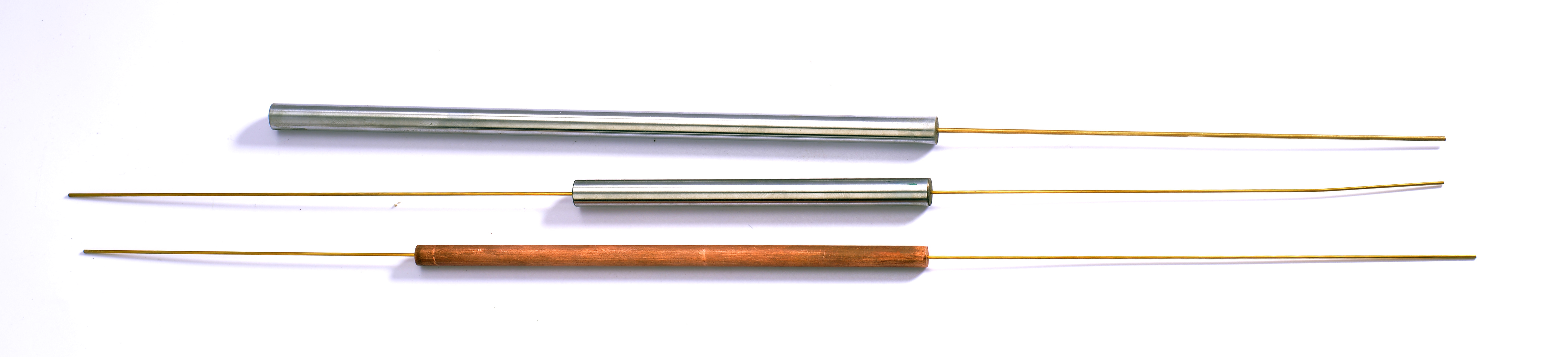

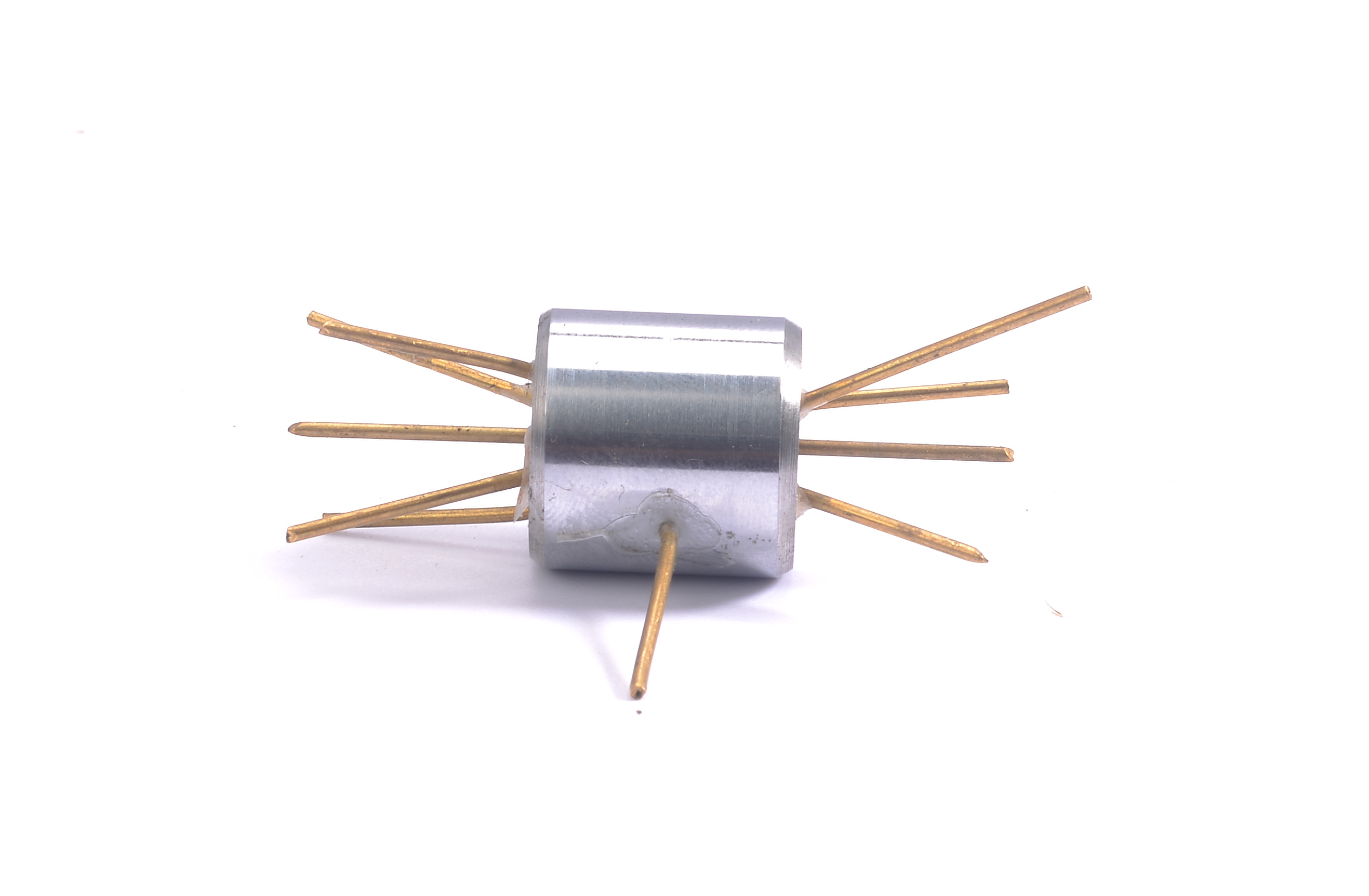

Sample Jobs
