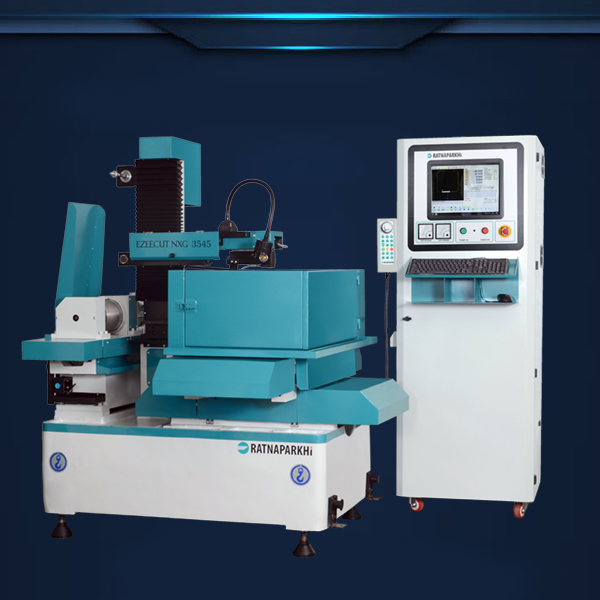

3545 NXG

Download Brochure

Video Link

Brief Information

Features
  • Low vibration Bipolar stepservo motors for X,Y,U,V Axis
  • Pendent unit with MPG for fine X,Y UV movement.
  • Online offset correction
  • Pitch error compensation for X,Y axis.
  • Pre-Spark facility
  • Pre-Jog facility
  • Inbuilt 4 axis DRO
Specifications
ParameterDetails
Work table size (mm)450 X 650
X Y Traverse (mm)350 X 450
Max. Z Height (mm)400
Max Taper angle (Degree)±3º/100 mm
Max Workpiece Weight (Kg.)300 Kg.
Floor Plan (mm)2700 X 2700 X 1860

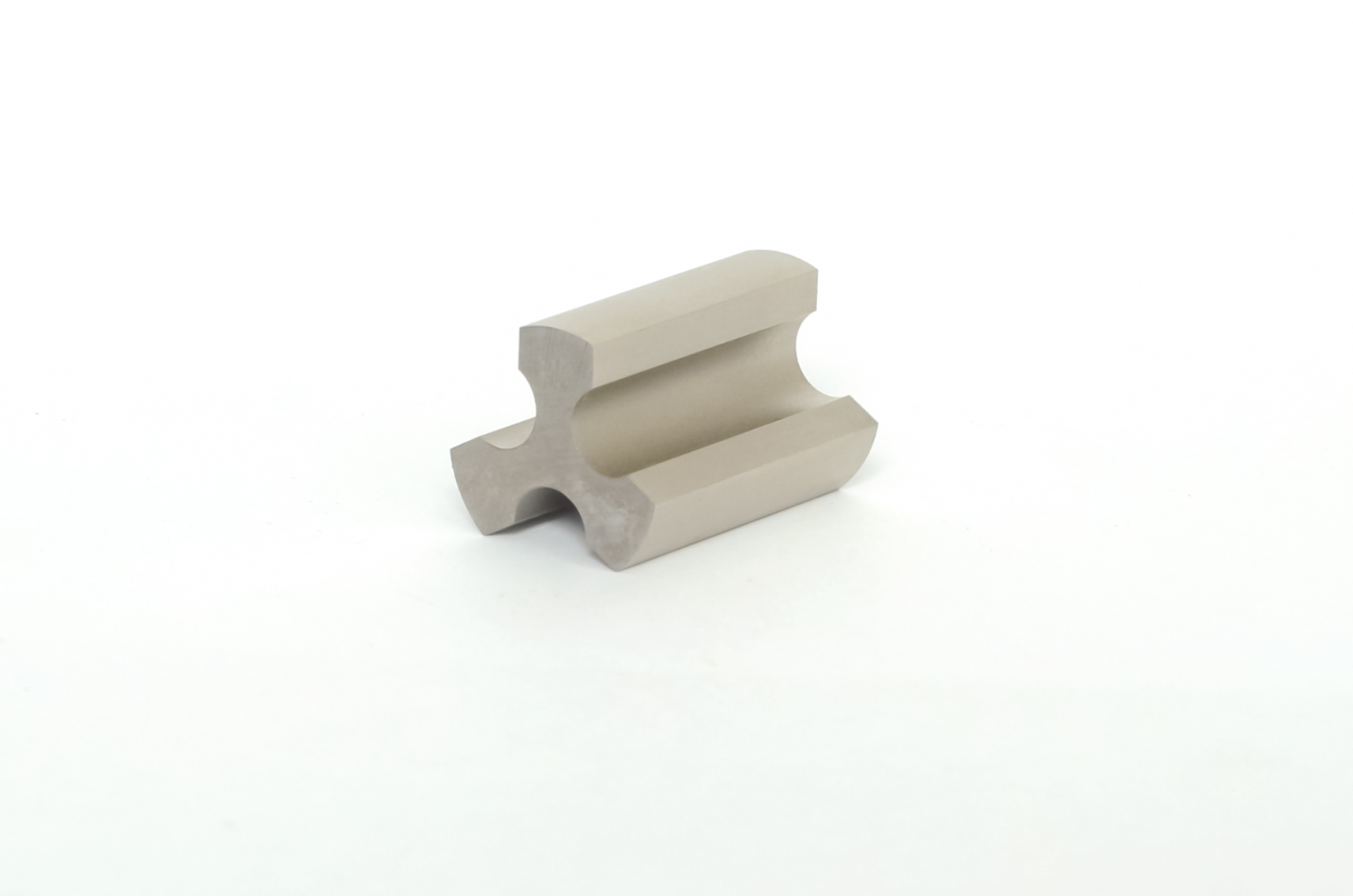

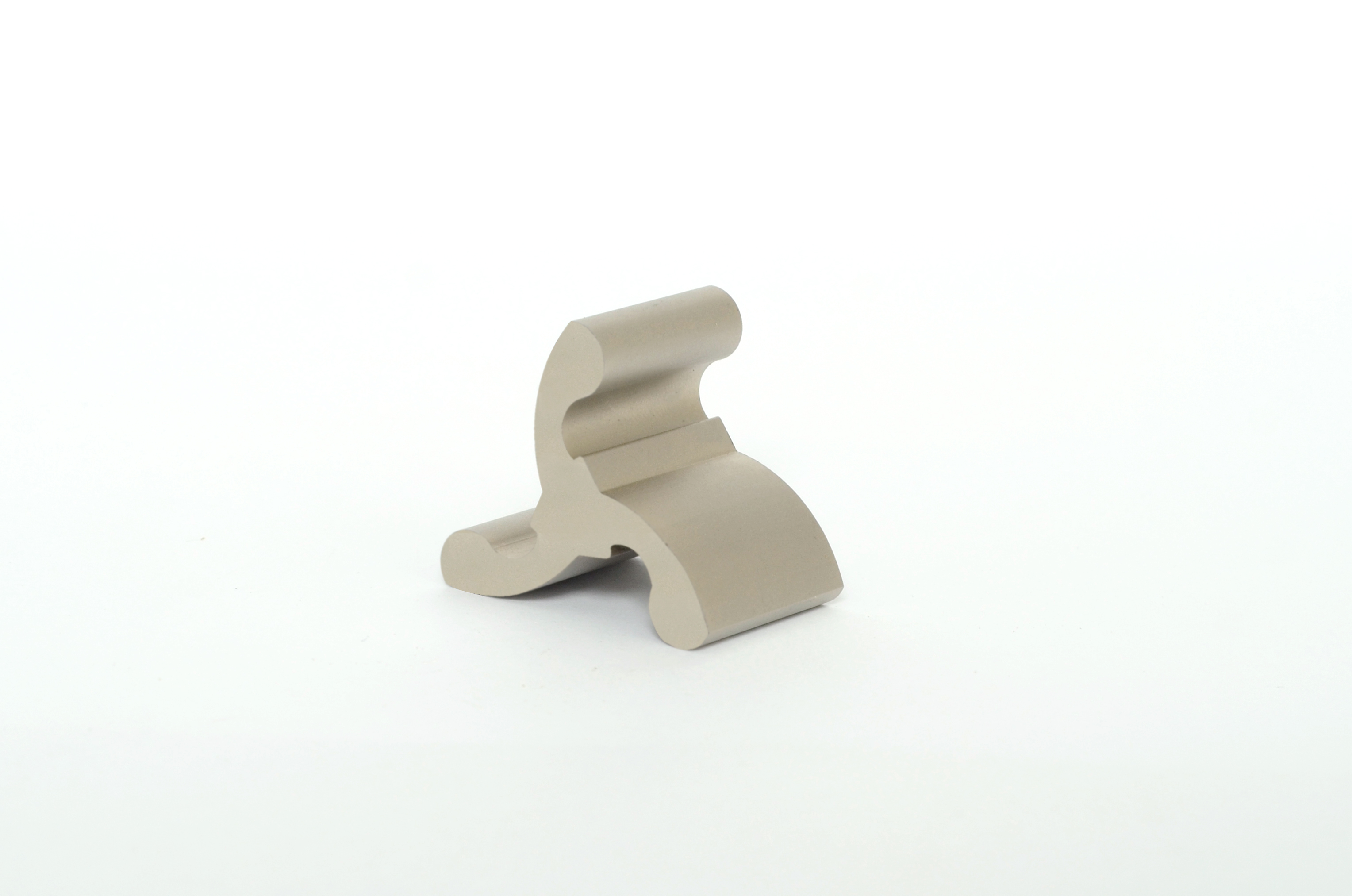

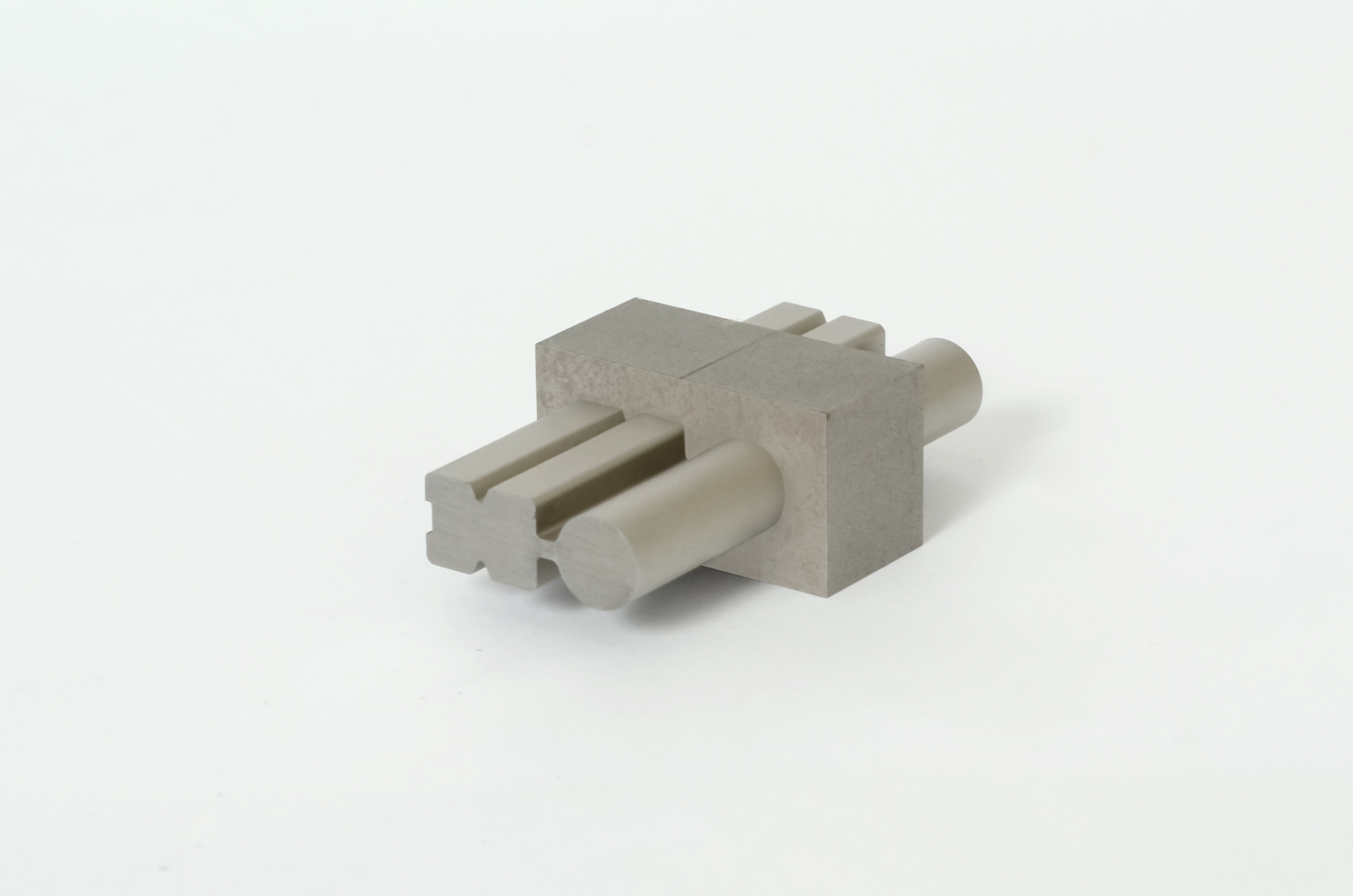

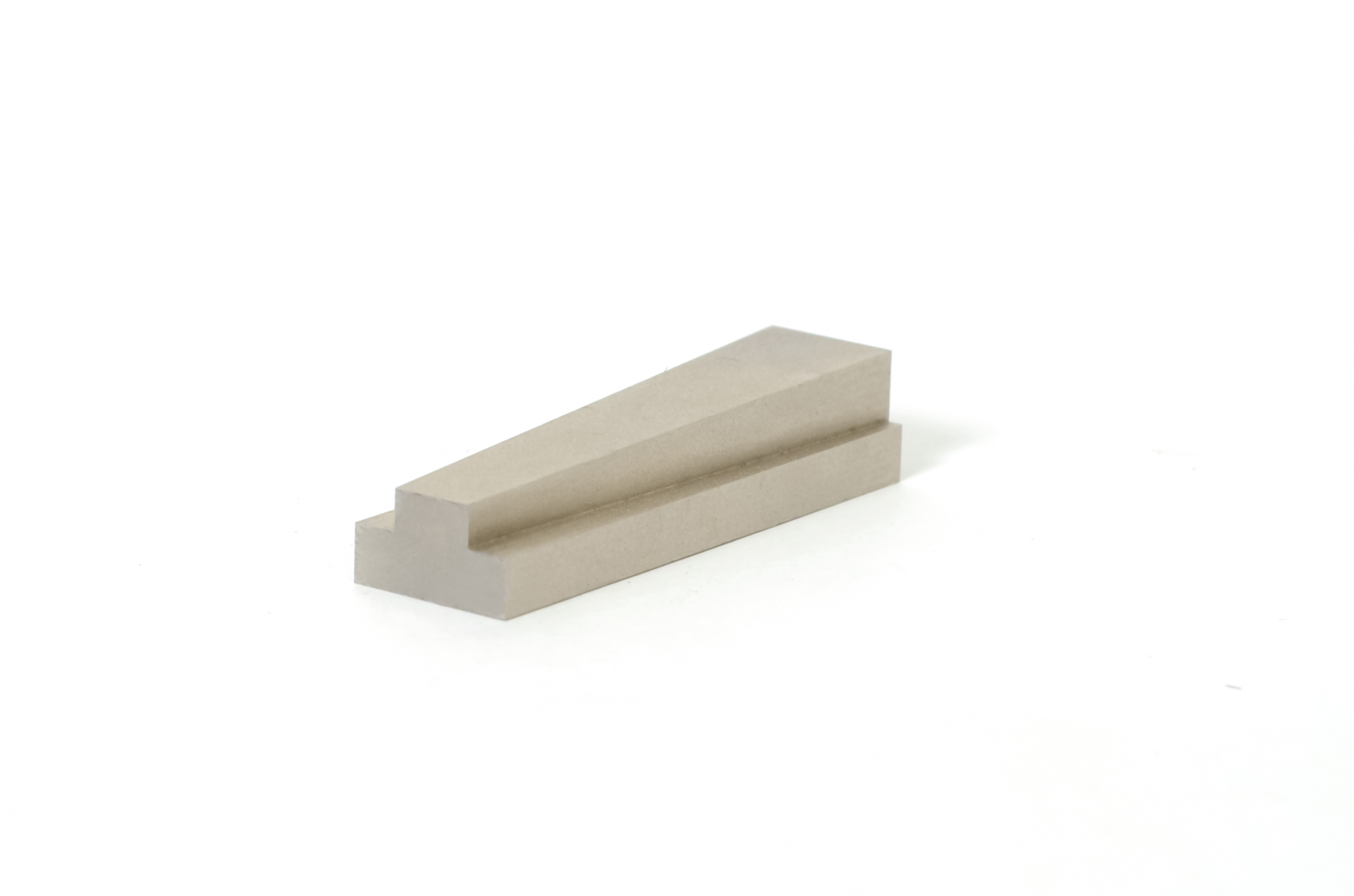

Sample Jobs
