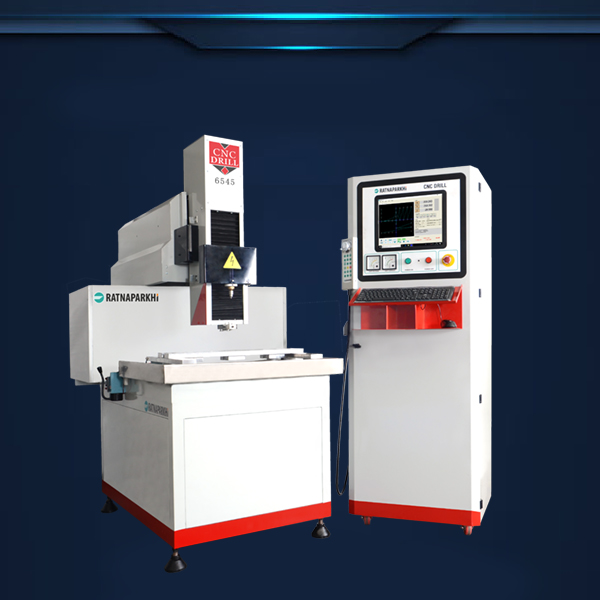

CNC EDM DRILL
Download Brochure
Video Link
Request Quotation
Please
Sign In
First for Quotation Request
Brief Information
Features
Direct Coupled AC Servo System for X, Y, Z Axis.
Ball Screws with pre-loaded angular contact bearings for X,Y, Z Axis
Can upload .dxf files
.xls file import for X, Y, Z POSITION AND ELECTRODE SIZE
Multifunction pendent with MPG for fine X,Y,Z- axis movement
Machine Reference facility.
All axis (X,Y,Z,and W) with LM Guideway.
Wear factor for electrode wear compensation.
Auto Z co-ordinate zero at the start of each drill.
Test ABC1254
Specifications
CNC EDM DRILL
Parameter
Details
Worktable size (mm)
700 X 450
X , Y Axis travel (mm)
450 X 350
Travel Z axis (mm)
250
Travel W axis (mm)
250
Max. Workpiece Weight (Kg.)
900
Max. Water pressure
6MPA-60 Kg/cm
Max. Machining current (Amp)
20
Sample Jobs
