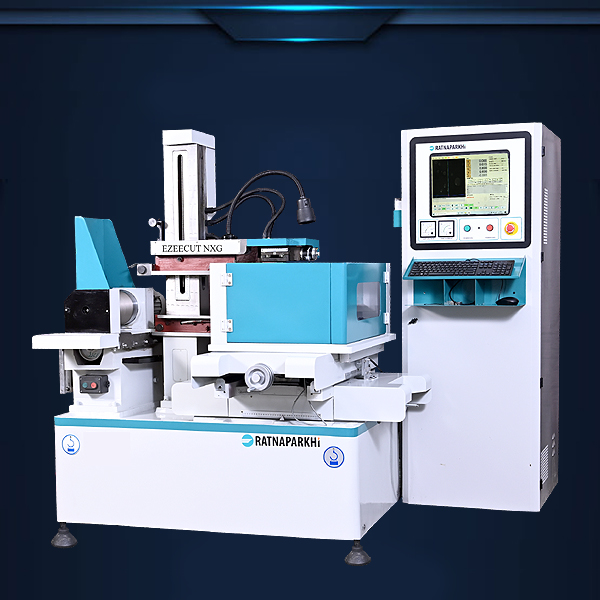

NXG

Download Brochure

Video Link

Brief Information

Features
  • Online offset correction
  • Multi cut facility
  • Z Axis Motorized (For selected models)
  • Closed loop system
  • X , Y Axis With LM Guide Ways (For selected models)
  • Double Door Work Table Water guard (For selected models)
  • Low running cost
  • Max. Cutting speed 120 mm²/mim on steel (HcHCr/WPS)
  • Reusable Molybdenum wire technology
  • Precision Ball screws for X , Y Axis
  • Best surface finish 1.0 to 1.5 μRa
  • Taper angle of ± 3°
Specifications
ParameterDetails
Work table size (mm)280 X 380
X Y Traverse (mm)250 X 300
Max. Z Height (mm)200
Max Taper angle (Degree)±3º/100 mm
Max Workpiece Weight (Kg.)200 Kg.
Floor Plan (mm)2300 x 2300 X 1740
ParameterDetails
Work table size (mm)400 X 600
X Y Traverse (mm)320 X 400
Max. Z Height (mm)400
Max Taper angle (Degree)±3º/100 mm
Max Workpiece Weight (Kg.)300 Kg.
Floor Plan (mm)2700 X 2700 X 1860
ParameterDetails
Work table size (mm)500 X 750
X Y Traverse (mm)400 X 500
Max. Z Height (mm)500
Max Taper angle (Degree)±3º/100 mm
Max Workpiece Weight (Kg.)400 Kg.
Floor Plan (mm)2750 X 2700 X 1900
Max Job Weight (Kg.)100
ParameterDetails
Work table size (mm)670 X 1000
X Y Traverse (mm)500 X 630
Max. Z Height (mm)600
Max Taper angle (Degree)±3º/100 mm
Max Workpiece Weight (Kg.)900 Kg.
Floor Plan (mm)2800 X 2700 X 2200
ParameterDetails
Work table size (mm)990 X 1360
X Y Traverse (mm)800 X 1000
Max. Z Height (mm)800
Max Taper angle (Degree)±3º/100 mm
Max Workpiece Weight (Kg.)1500 Kg.
Floor Plan (mm)3200 X 3400 X 2300
ParameterDetails
Work table size (mm)1130 X 1460
X Y Traverse (mm)1000 X 1200
Max. Z Height (mm)1000
Max Taper angle (Degree)±3º/100 mm
Max Workpiece Weight (Kg.)2500 Kg.
Floor Plan (mm)4000 X 4000 X 2400

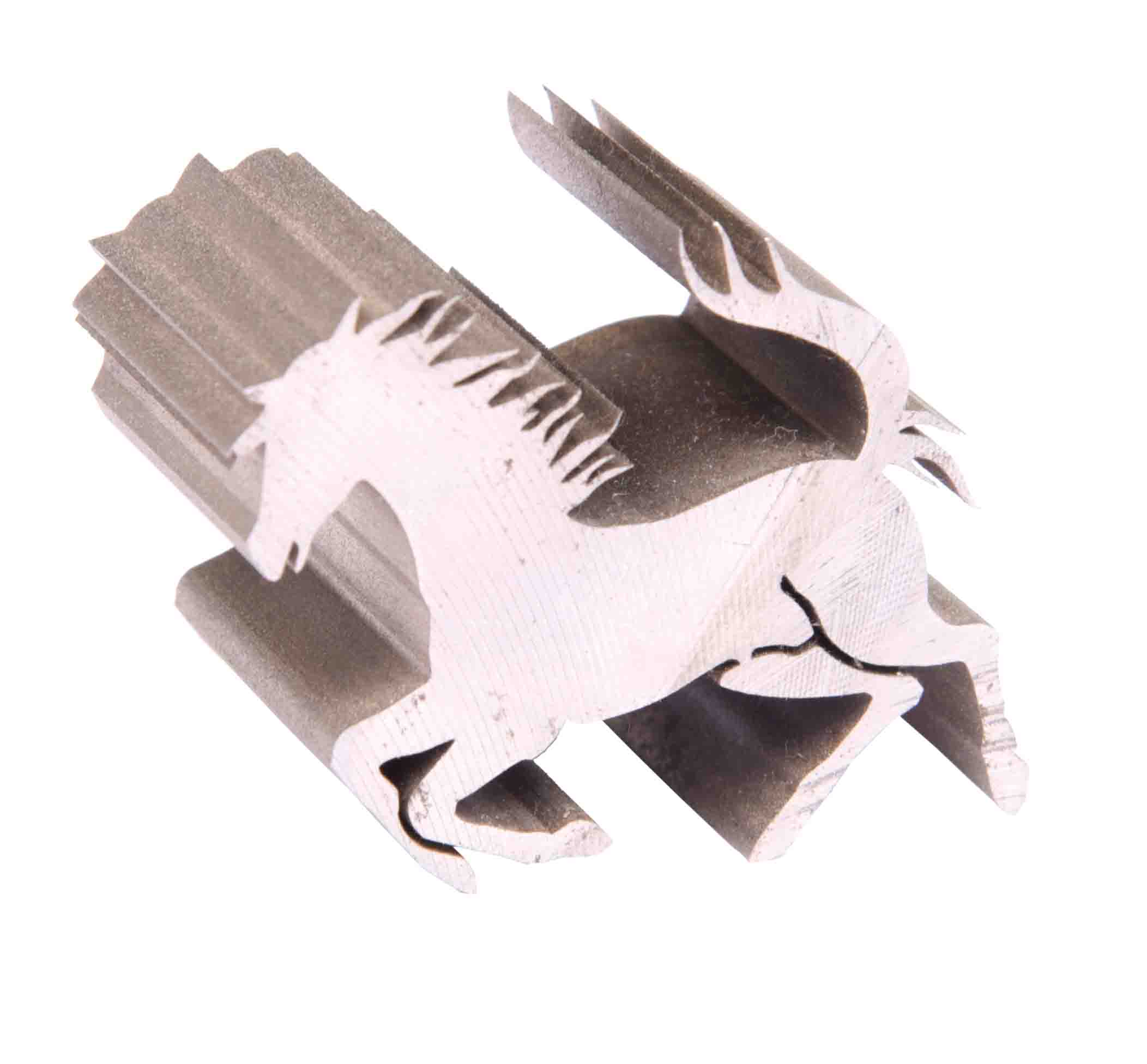

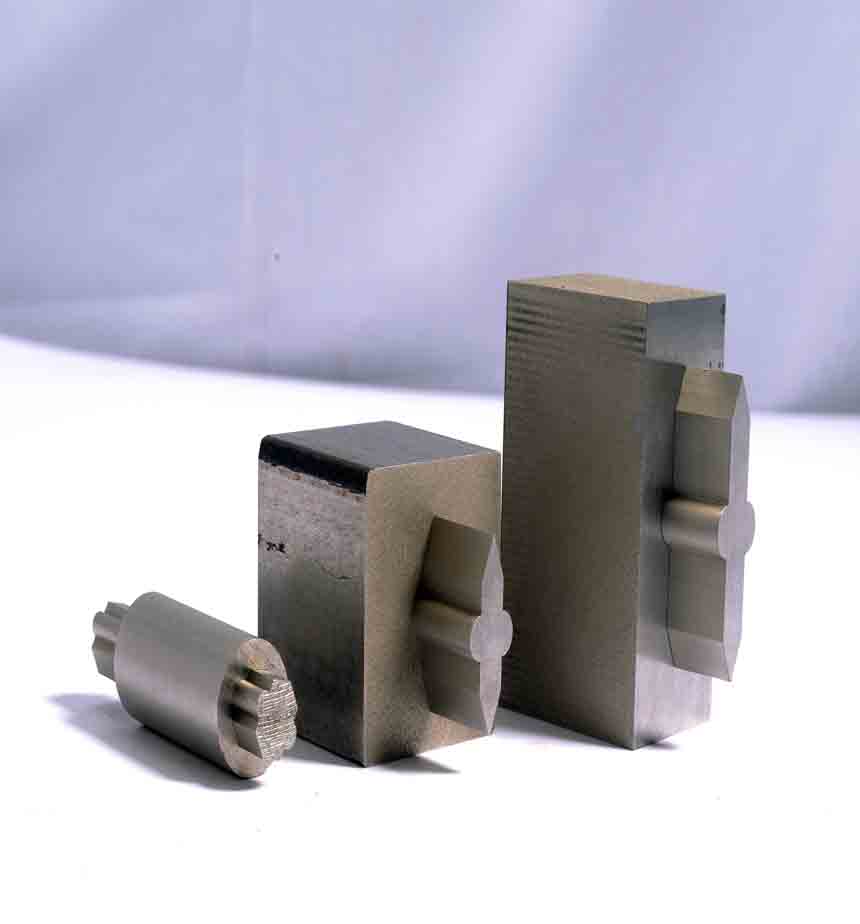

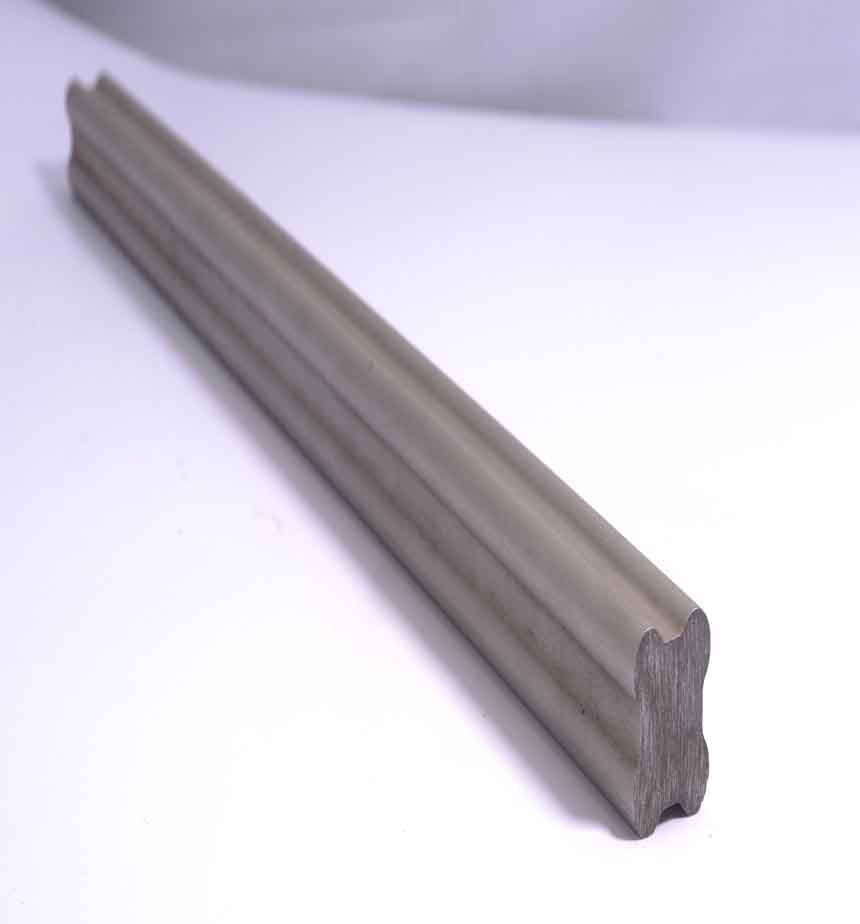

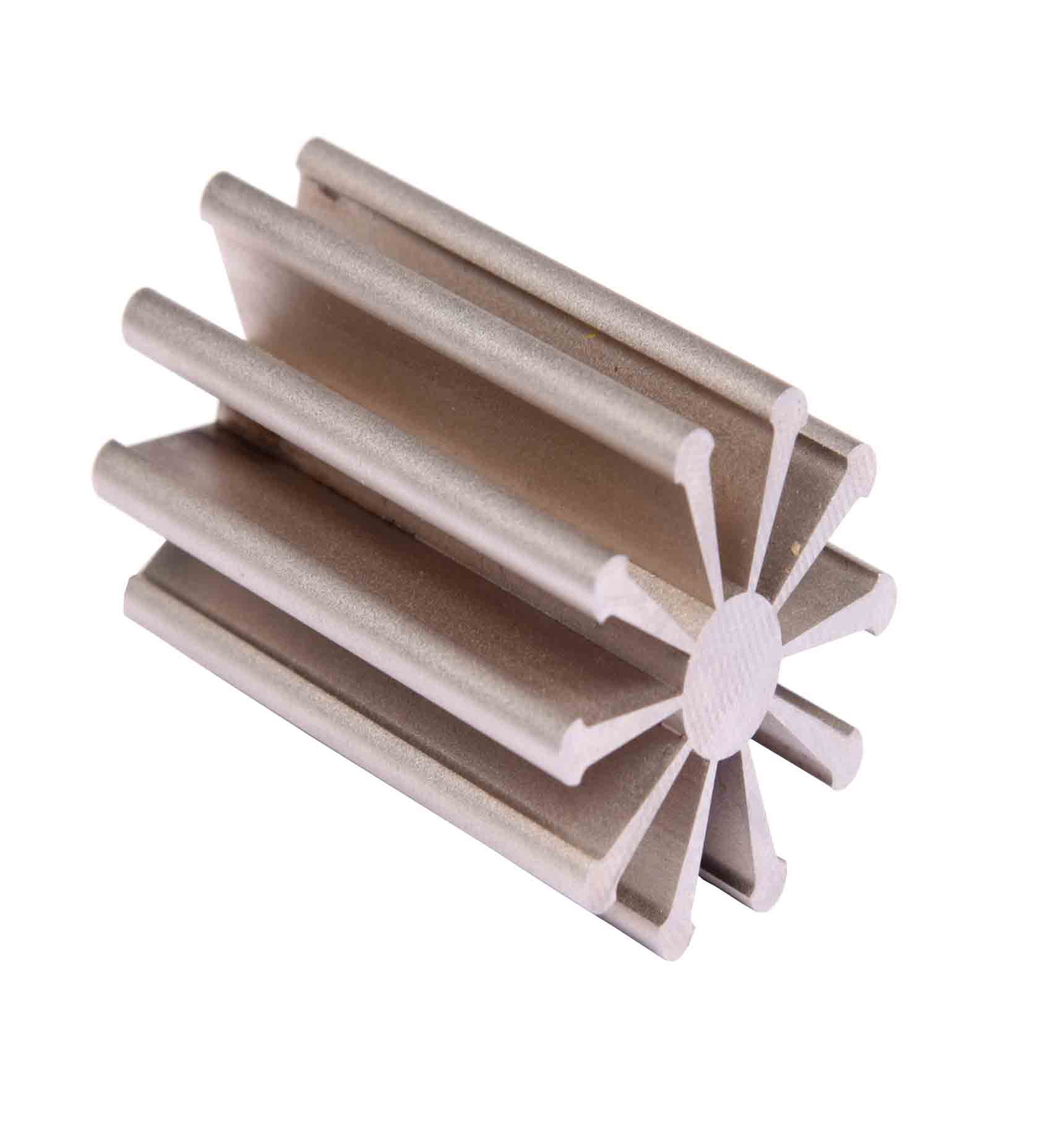

Sample Jobs
