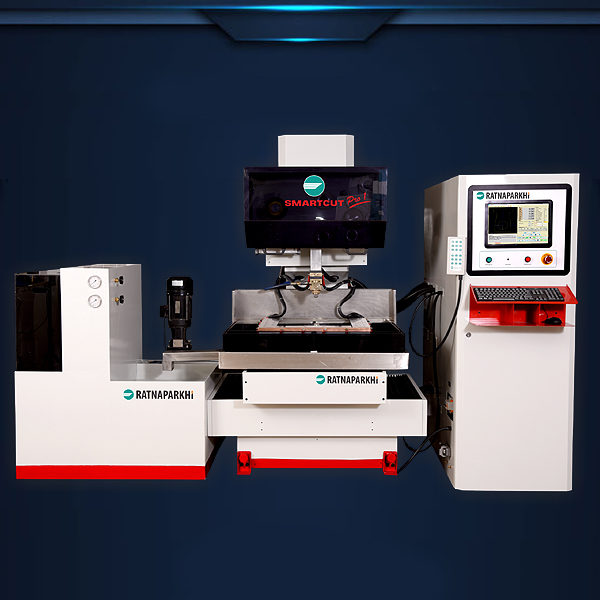

SMART CUT PRO 1

Download Brochure

Video Link

Brief Information

Features
  • Full closed loop X ,Y (1 μ linear scale & z with 5 μ linear scale) with error compensation
  • Direct coupled Ac Servo motors
  • Max. Cutting speed 140 mm²/mim on steel (HcHCr/WPS)
  • Online offset correction
  • Low running cost
  • Best surface finish 0.8 to 1 μRa
  • CS-EDM machining parameter override
  • CC-Corner control to avoid wire breakages
  • Maximum pendent rapid speed 1200 mm/min
  • Z down position lock to avoid collision
  • Auto align function for workpiece
  • Semi auto wire threading (SAWT)
Specifications
ParameterDetails
Work table size (mm)400 x 600
X-Y Traverse (mm)300 x 400
Max.Z Height (mm)250
Max Taper angle±30°/50 mm
Max Work piece weight (Kg.)300
Floor Plan (mm)3050 x 2500 x 2000

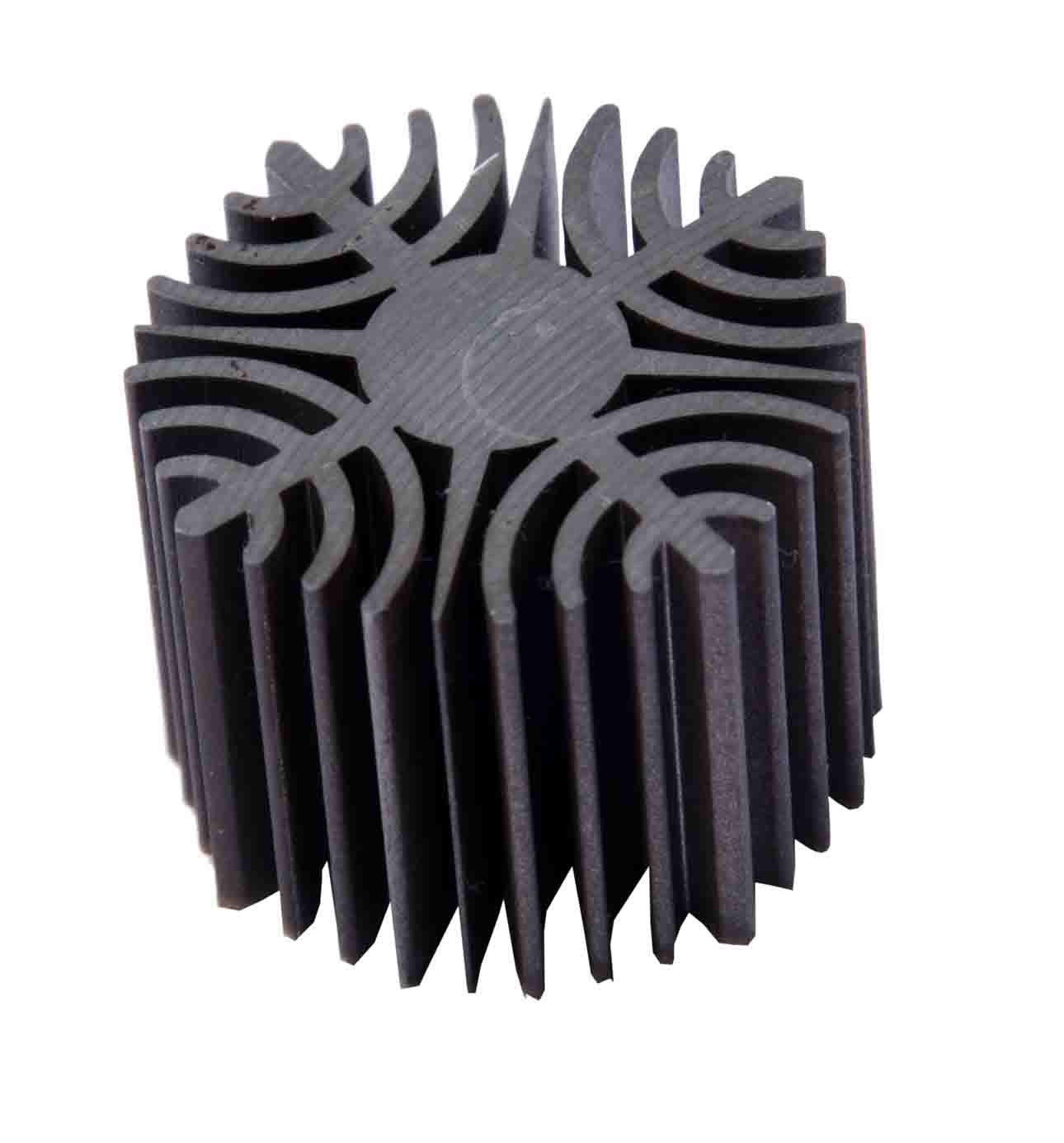

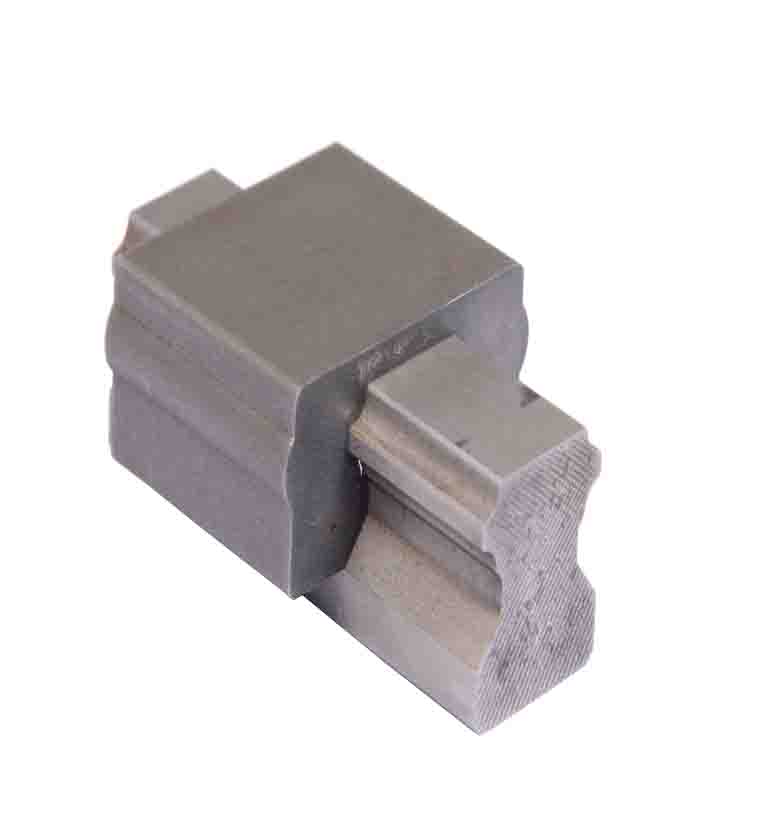

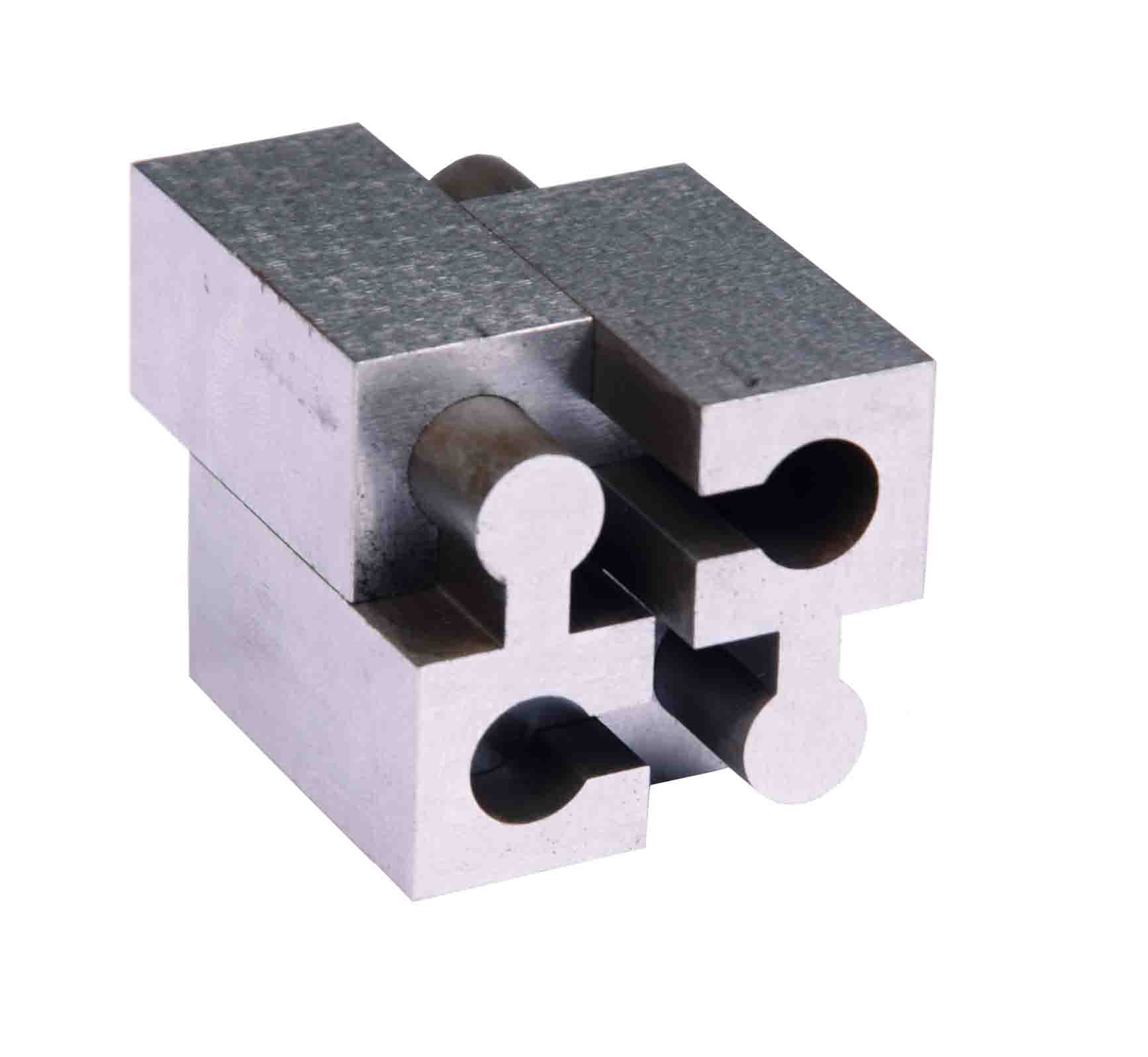

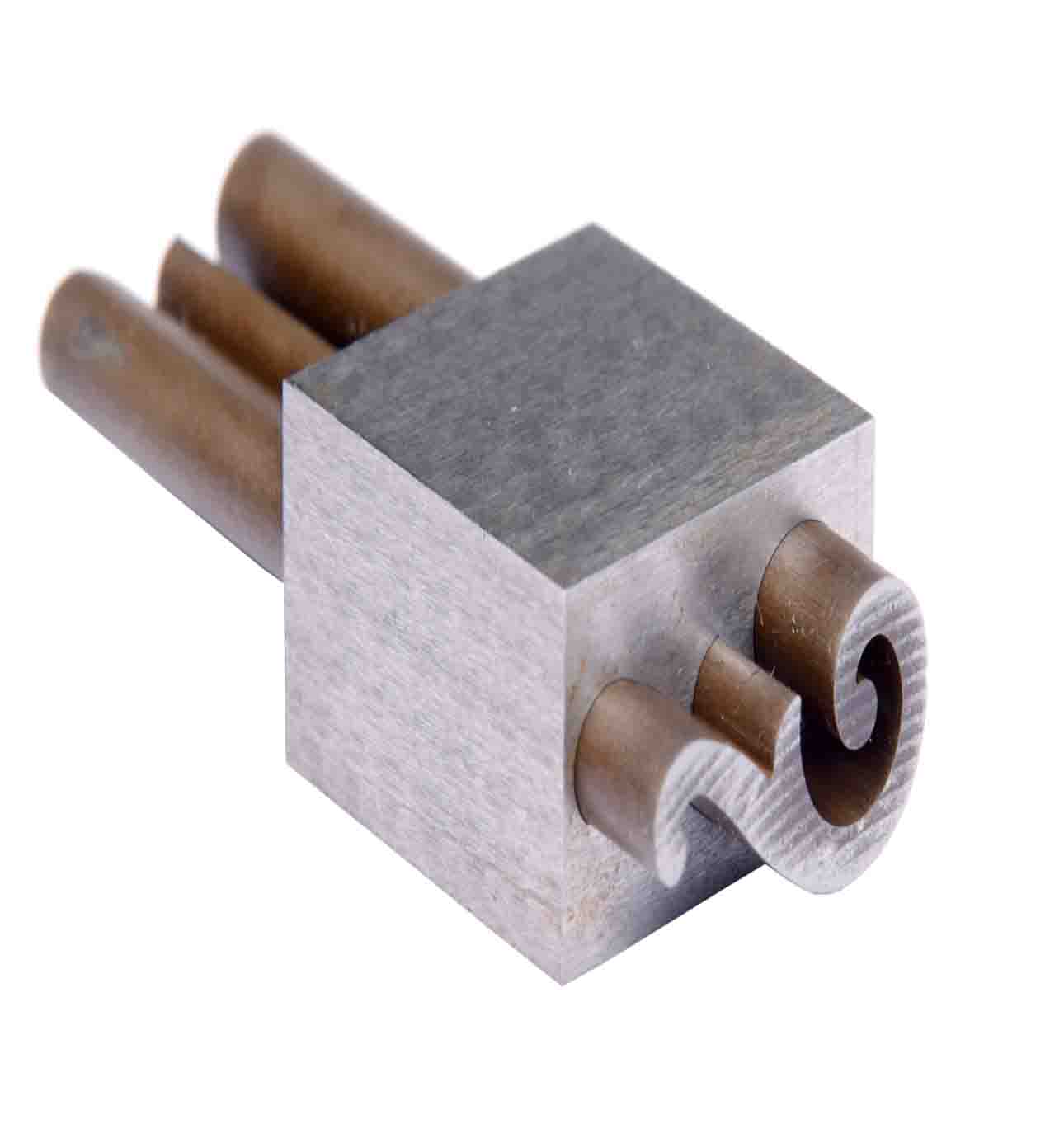

Sample Jobs
