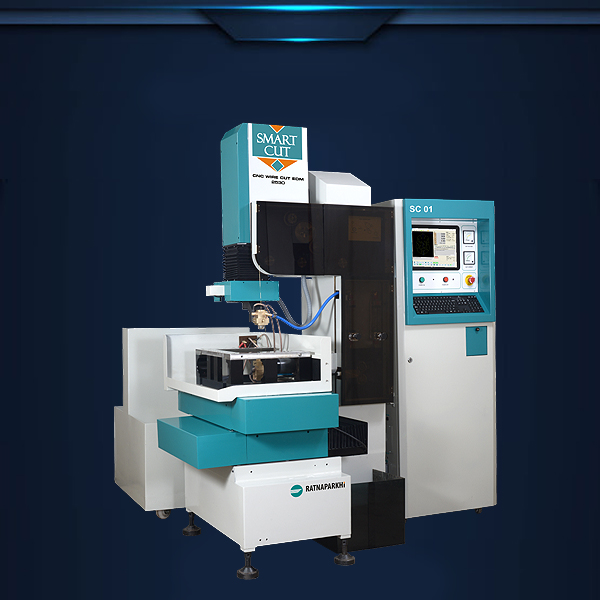

SMART CUT 2530

Download Brochure

Video Link

Brief Information

Features
  • Full closed loop X ,Y (1 μ linear scale & z with 5 μ linear scale) with error compensation
  • Online offset correction
  • Low running cost
  • Max. Cutting speed 100 mm²/mim on steel (HcHCr/WPS)
  • Best surface finish 0.8 to 1 μRa
  • CS-EDM machining parameter override
  • CC-Corner control to avoid wire breakages
  • Maximum pendent rapid speed 600 mm/min
  • Z down position lock to avoid collision
  • Autoalign function
  • Direct Coupled motors
Specifications
ParameterDetails
Work table size (mm)500 x 400
X Y Traverse( mm)250 x 300
Max.Z Height (mm)200
Max Taper angle±10°/100 mm
Max Work piece weight (Kg.)300
Floor Plan (mm)3050 x 2500 x 2000
Test ParameterPulse Generator details

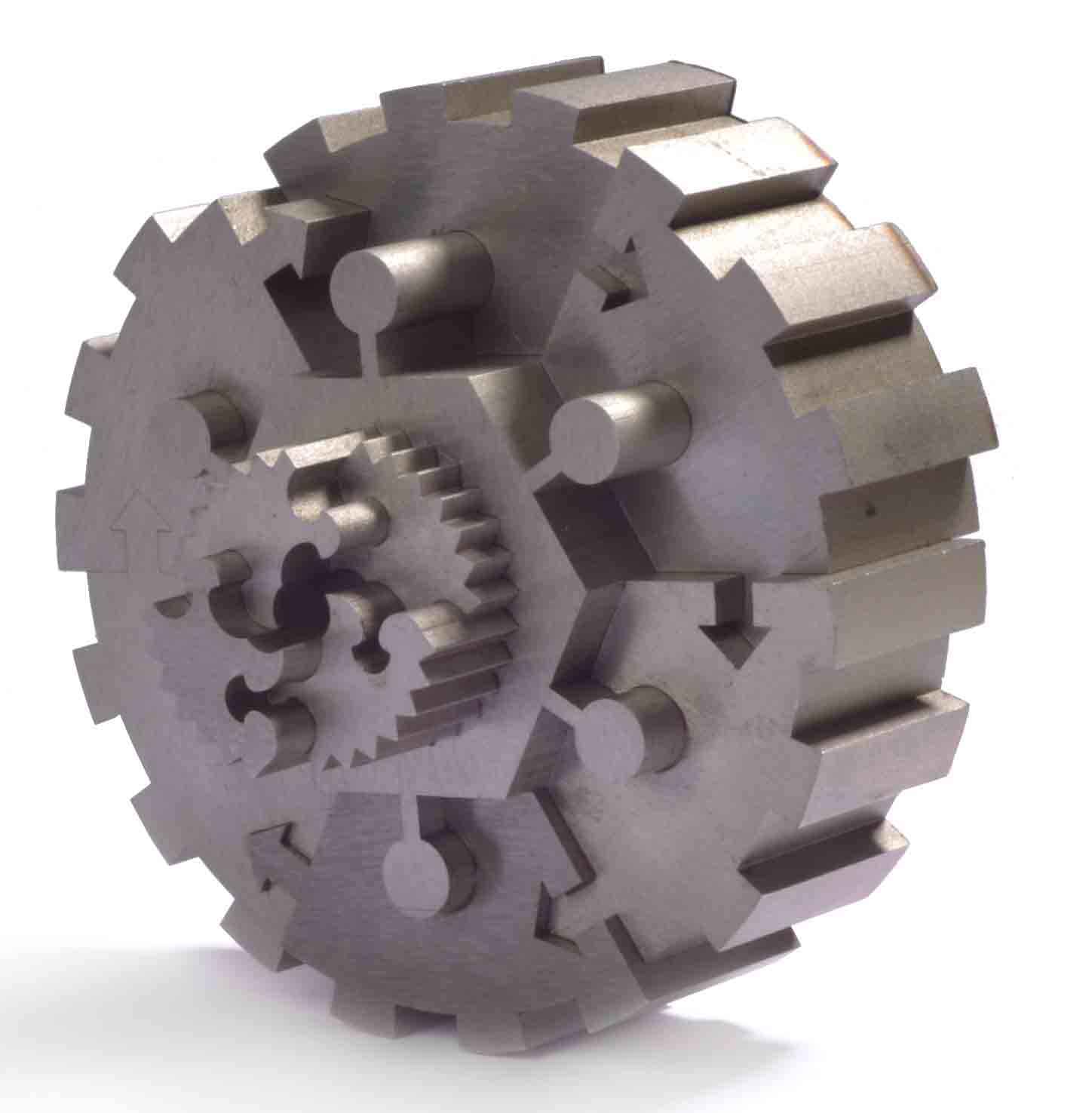

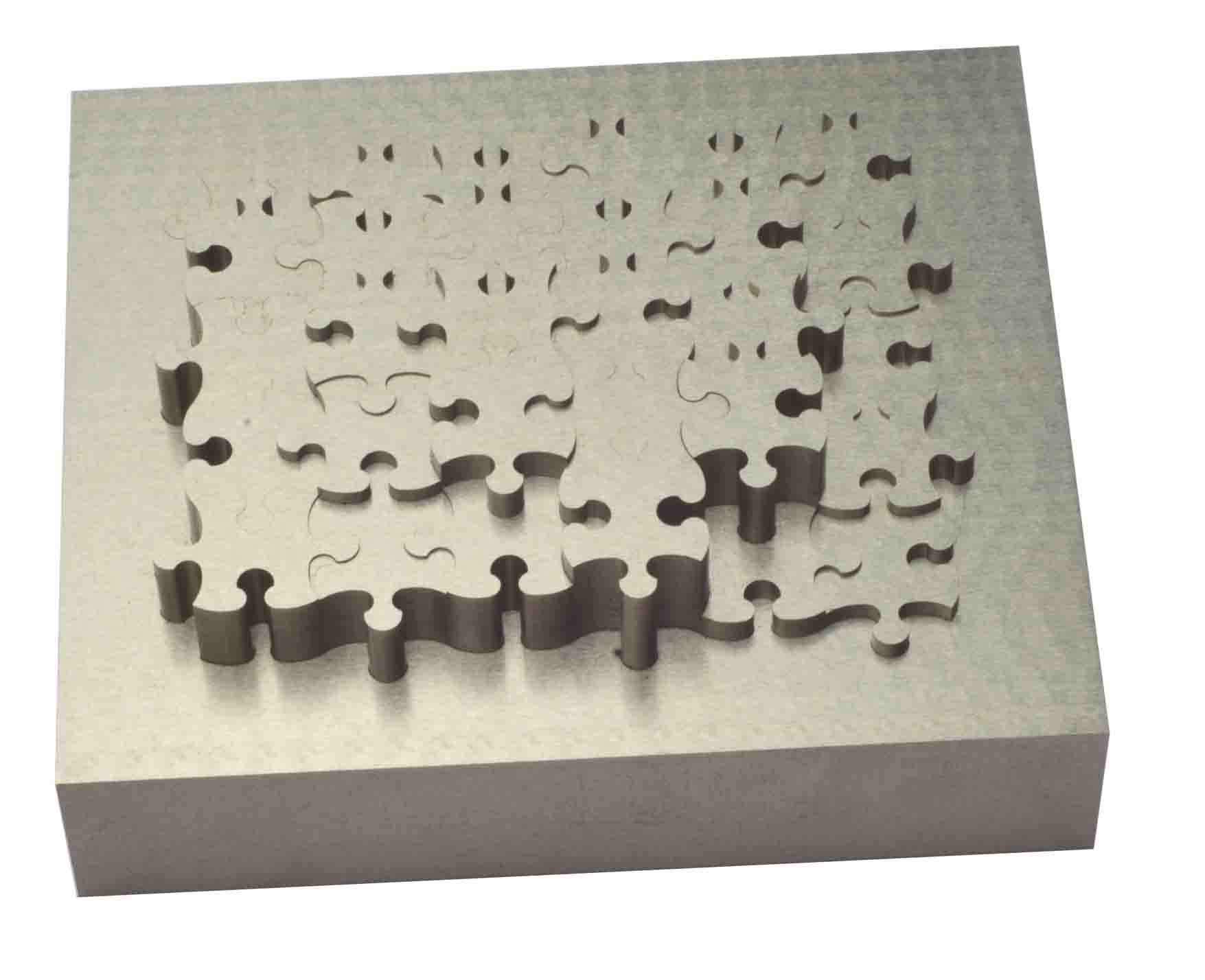

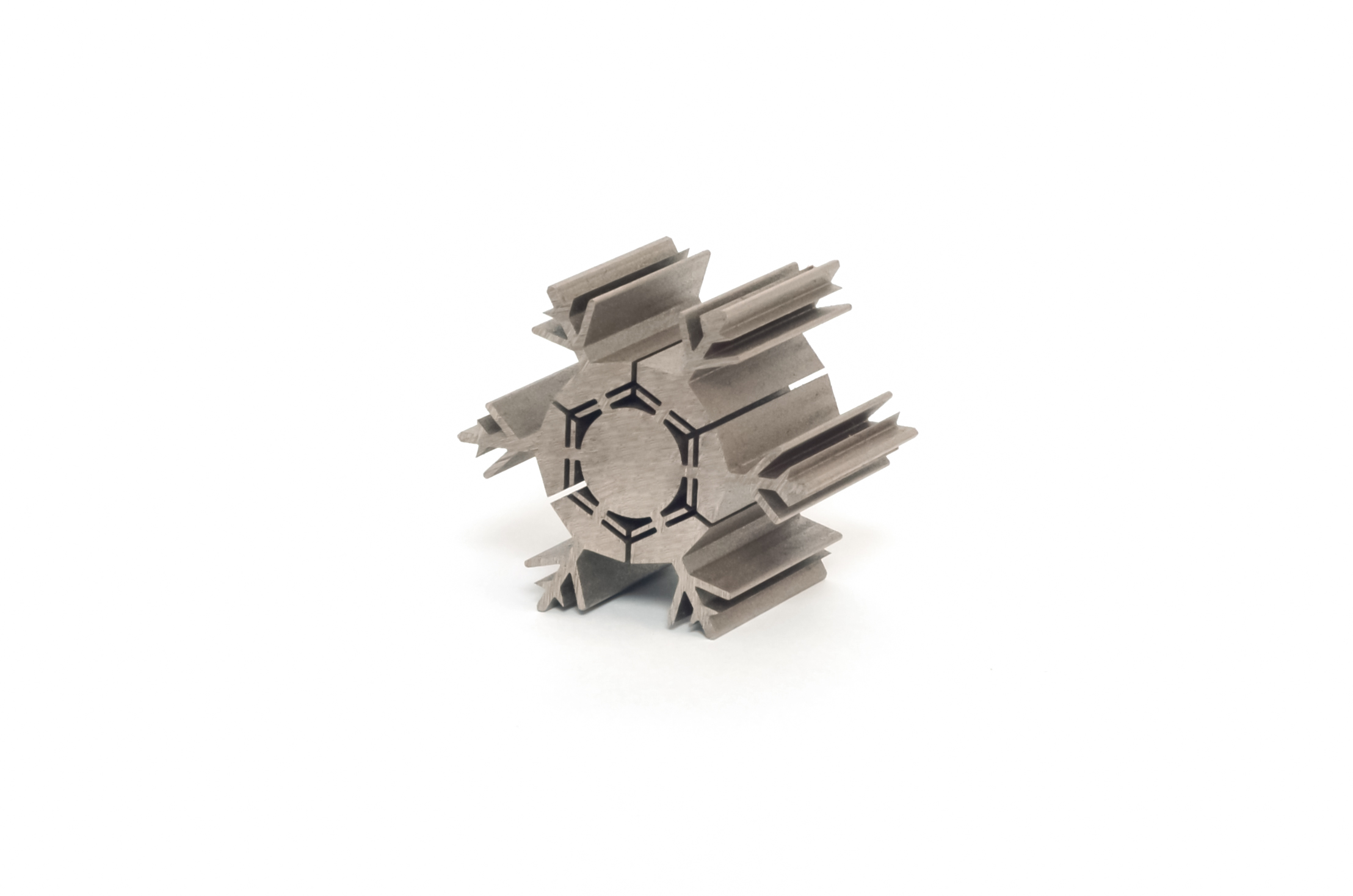

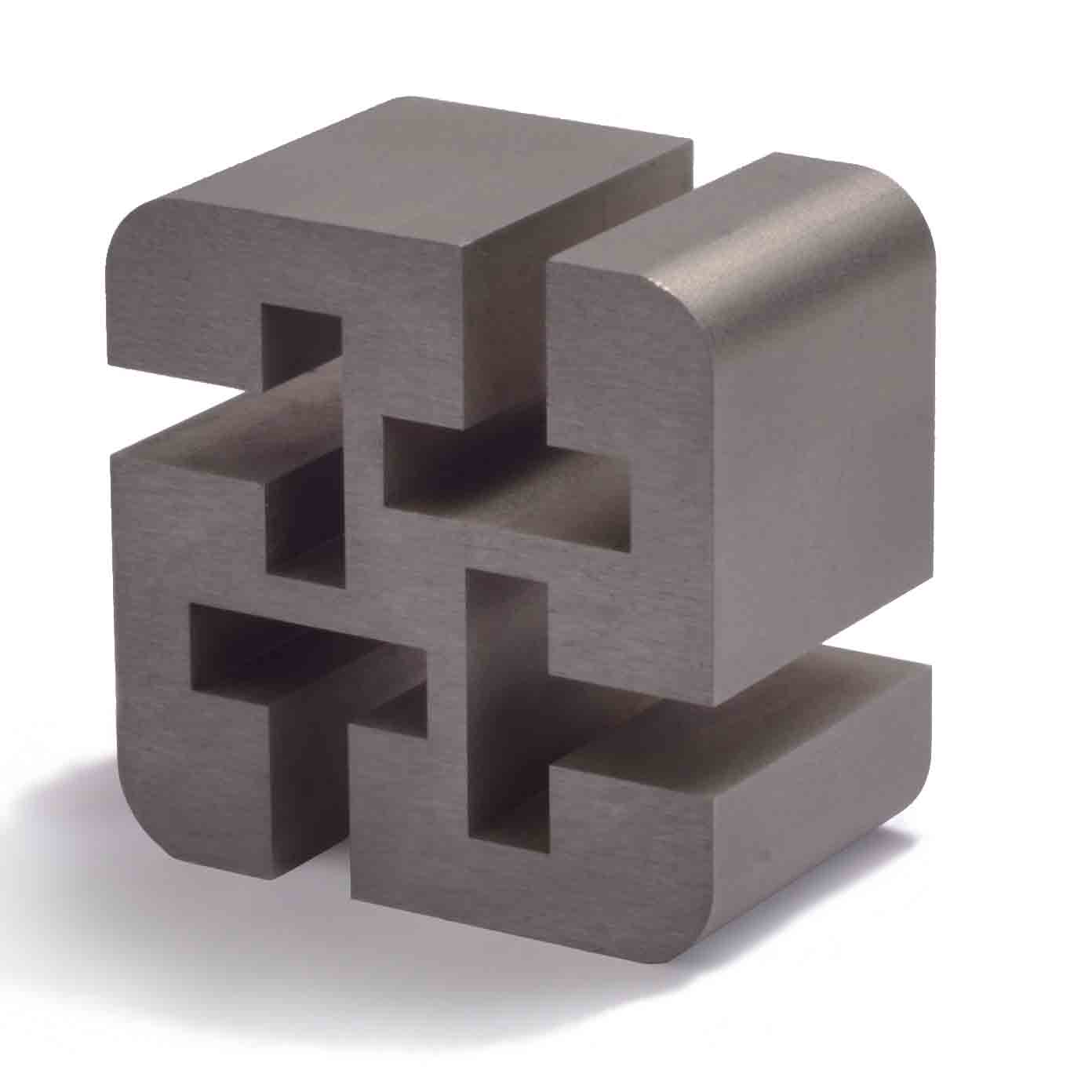

Sample Jobs
