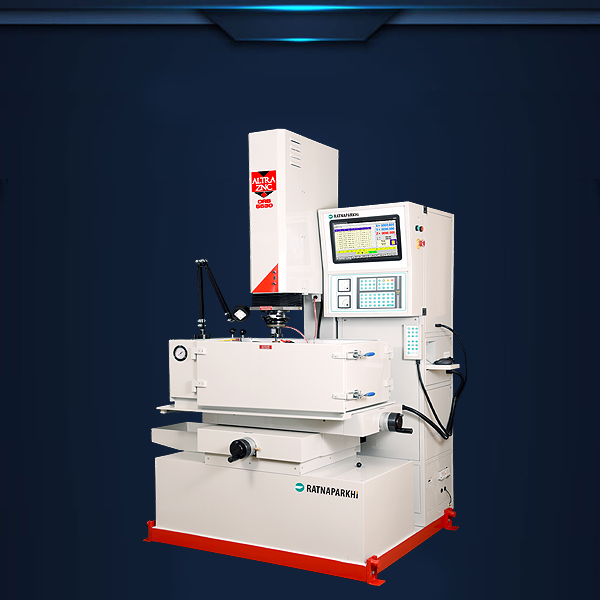

Brief Information

  • High speed Jump
  • Adaptive multi stage anti arc
  • Safe Mode
  • Fuzzy Logic Fuzzy logic system will auto select best machining parameters in 4 step programming
  • Z axis reference after power on to ensure correct z-axis co-ordinates
  • Ball screw for X , Y , Z and M guideways for Z Axis
  • Auto cycle operation based
  • Practically unlimited on. of programs and steps per program (depends om memory size)
Work tank dimensions (mm)850 X 530 X 300
Table Size (mm)550 X 300
X Axis travel (mm)300
Y Axis travel (mm)200
Z Axis travel (mm)250
Z Axis AC Servo
Max job height (mm)250
Max electrode weight (Kg.)60 Kg.
Max job weight (Kg.)300 Kg.
Pump motor rating 0.5 Hp 3 phase
Machine X & Y AxisBall screw
Machine Z AxisBall screw with LM guideways
Overall machine weight (Kg.)1000 Kg.
Maximum table quill distance (WA) (mm)350
Minimum table quill distance (WA) (mm)110
Machine foot print (mm)1500 X 1500 X 2300

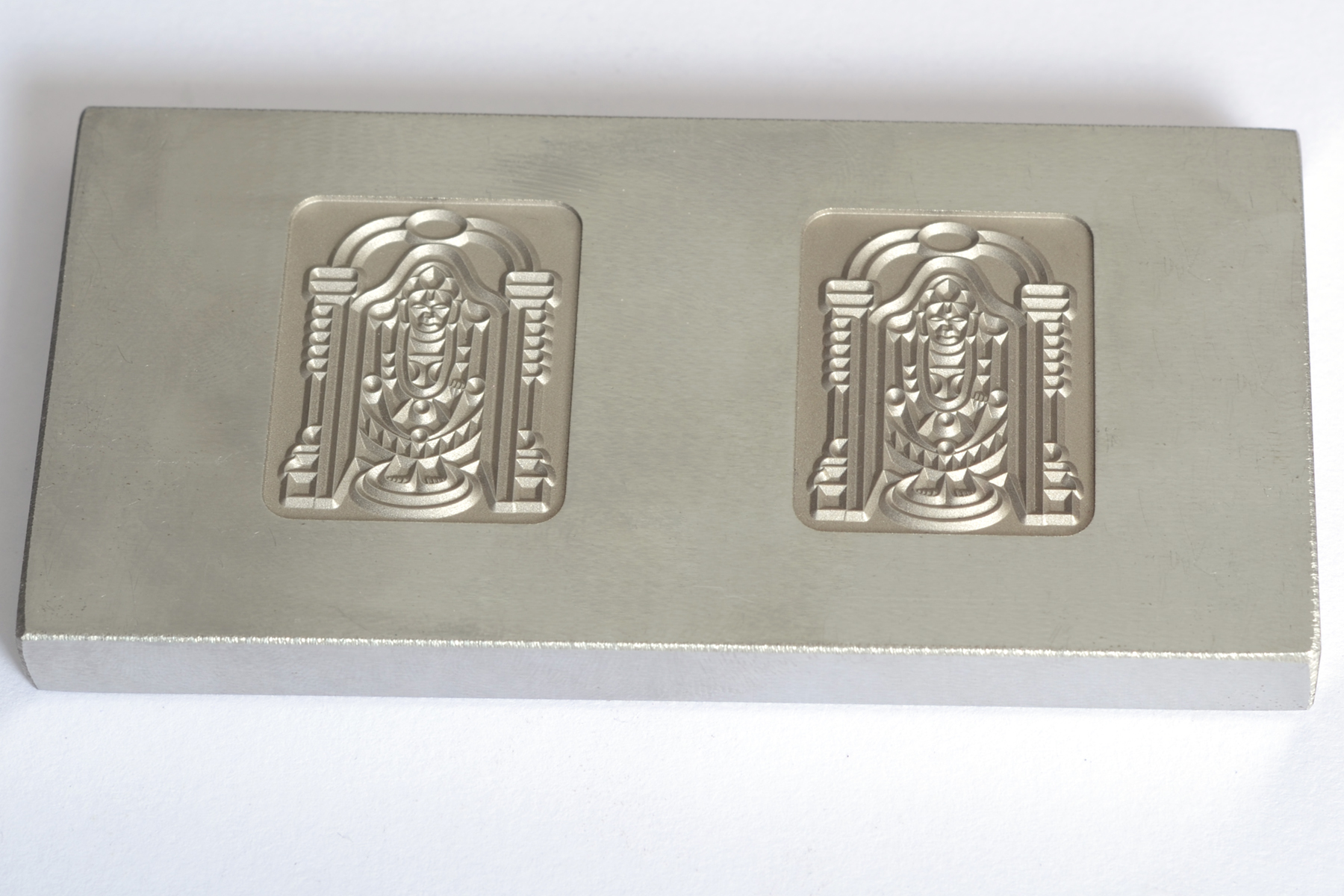

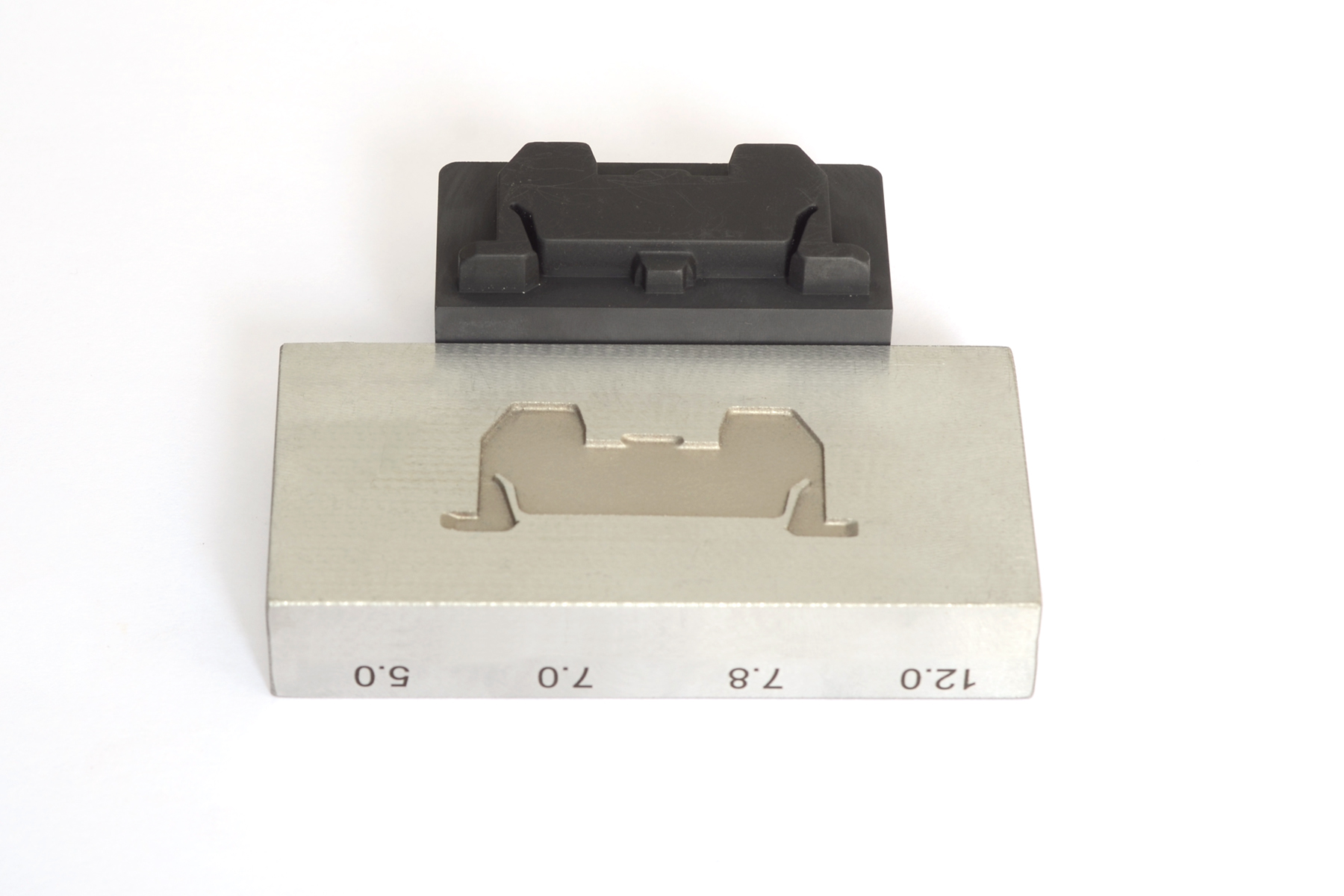

Sample Jobs
