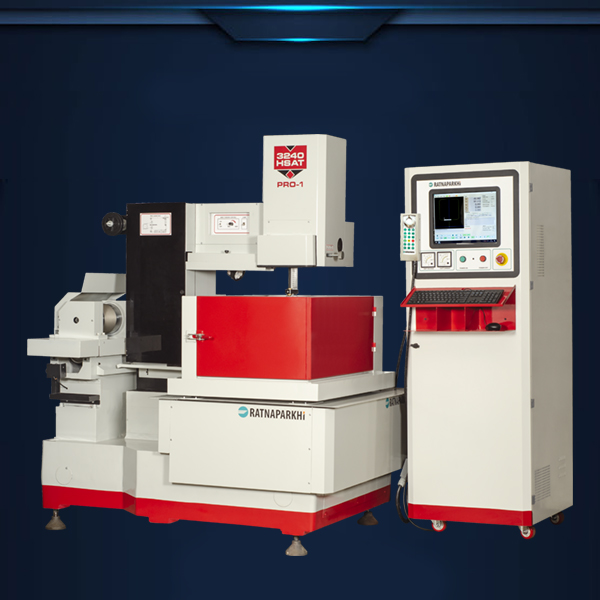

Brief Information

  • New C-type casting base rigid structure
  • Auto wire tension facility
  • Full Closed loop X , Y (linear scale) with error compensation
  • Guide system for smooth working
  • Max. Cutting speed 150 mm²/mim on steel (HcHCr/WPS)
  • Direct coupled japneese make Ac Servo motors
  • Online offset correction
  • precision Ball screws for X , Y Axis
  • Motorized Z Axis
  • Low running cost
  • Best surface finish 1.0 to 1.5 μRa
  • Inbuilt 4 Axis DRO
  • Taper angle of ± 5°
  • Pendent unit with multiple controls
  • X , Y , U , V axis with LM guide ways
  • Multi voltage provision for better surface
  • LM Guideways for Drum Assembly
  • Work Table water guard with door
Work table size (mm)450 X 600
X Y Traverse (mm)300 X 400
Max Z Height (mm)300
Max Taper angle (Degree)±5º/100 mm
Max Work piece weight (Kg.)300 Kg.
Floor Plan (mm)2300 X 2800 X 1750
Minimum increment0.001 mm

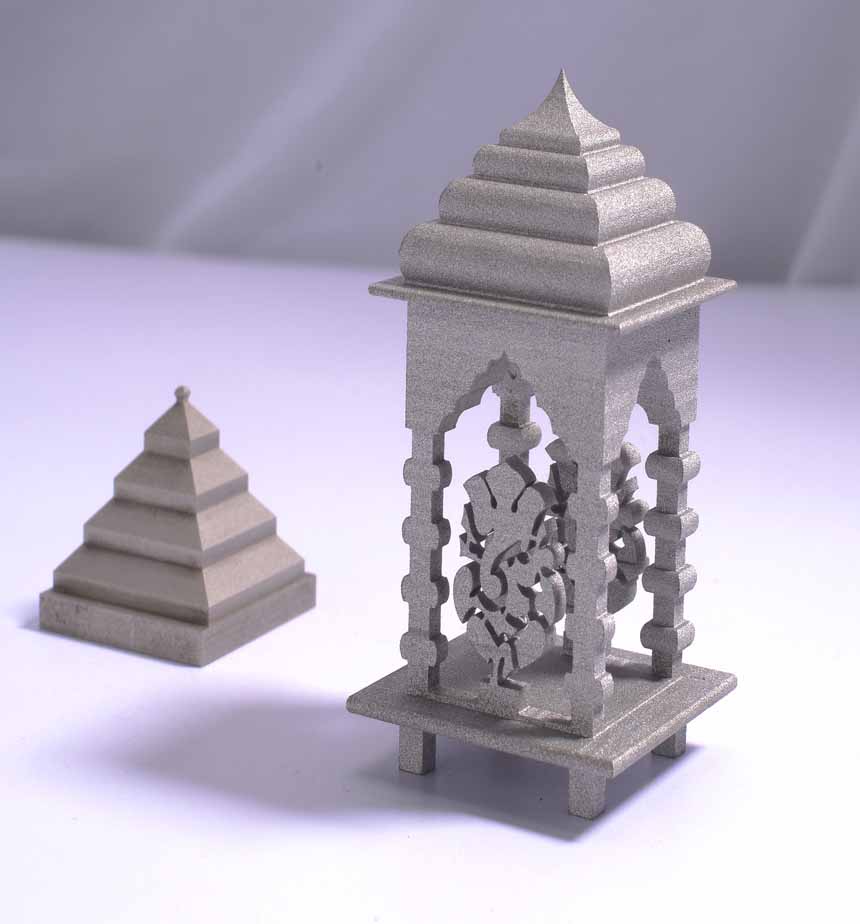

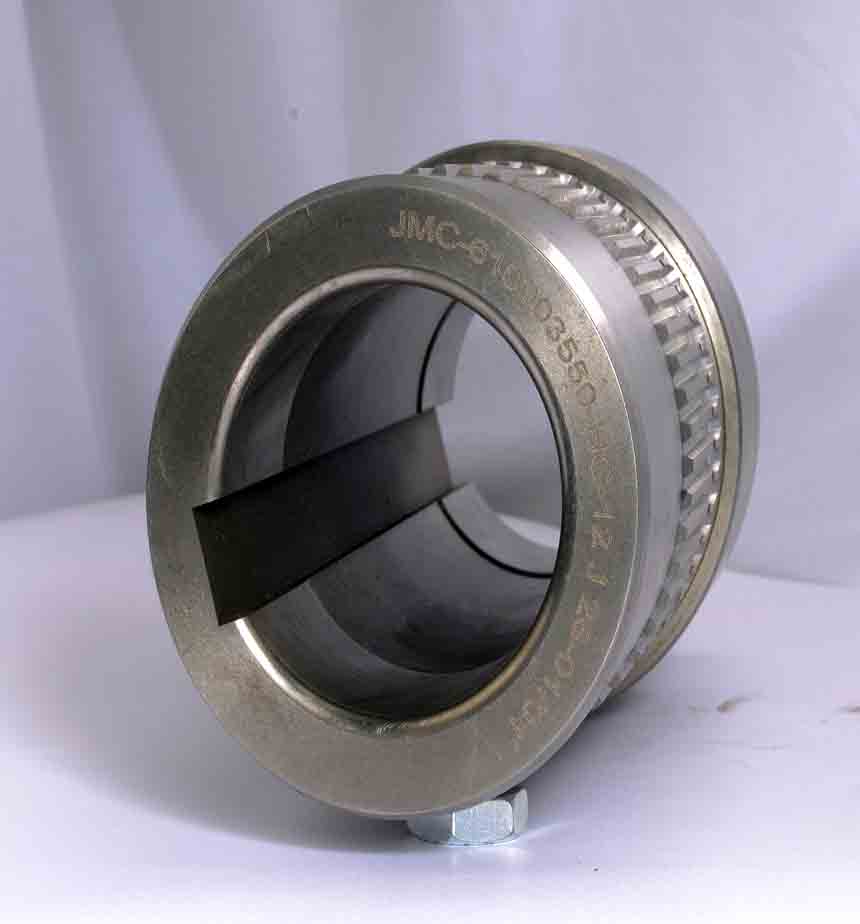

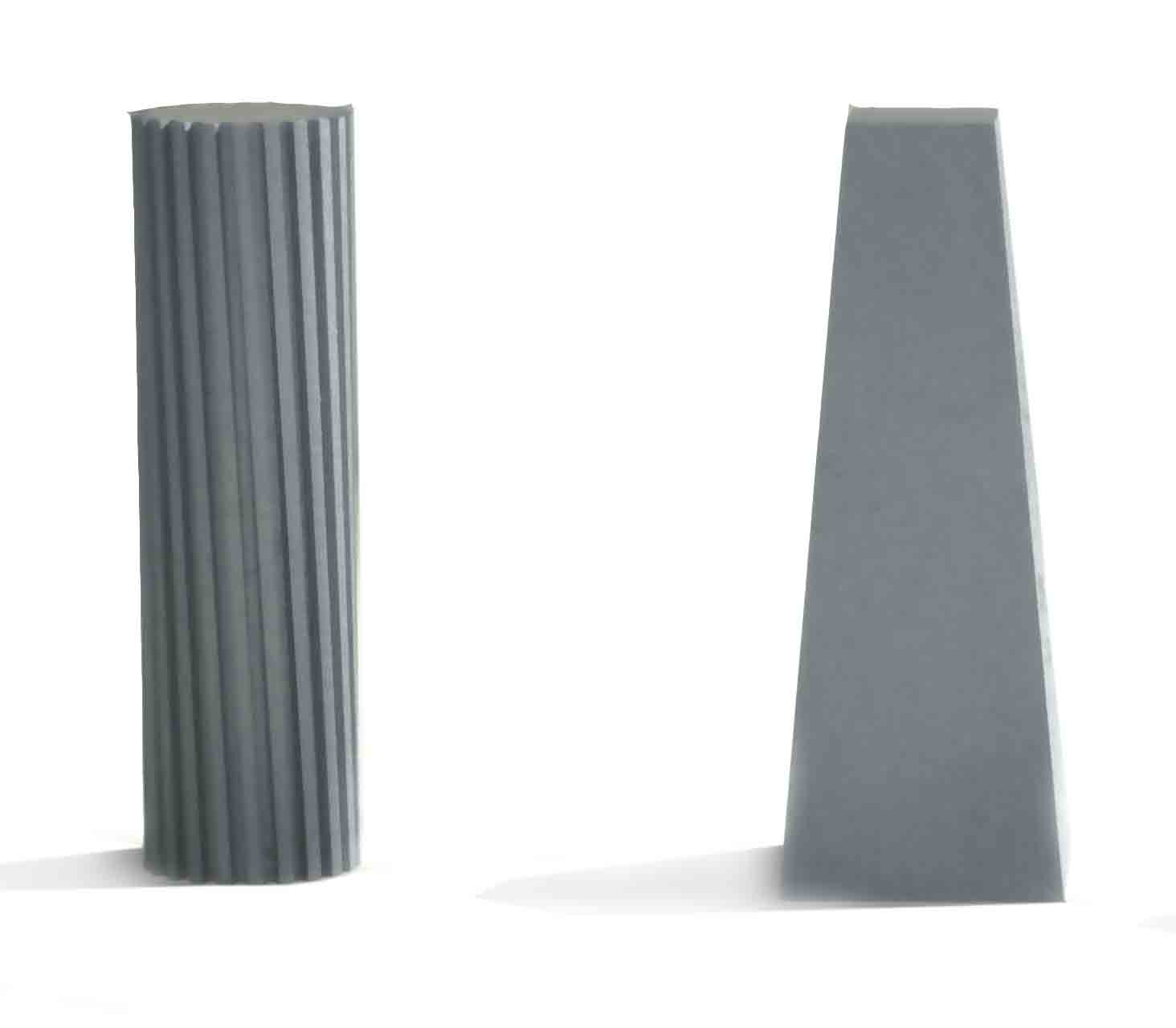

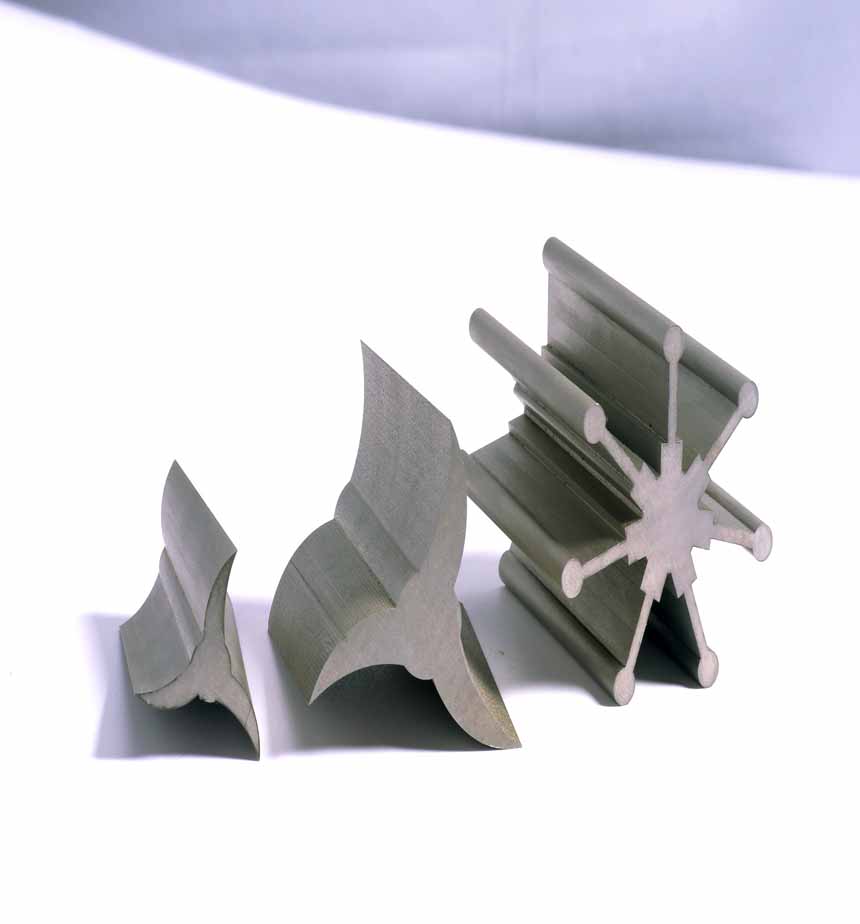

Sample Jobs
