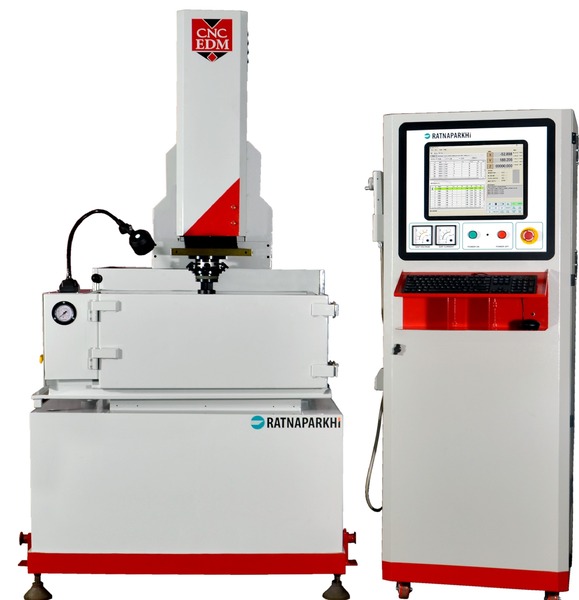

CNC EDM

Download Brochure

Video Link

Brief Information

Features
  • Adaptive multi stage anti arc
  • A high-speed jump of 3.3 mtr/min maintains clean gap
  • A safe mode for deep cavities where flushing conditions are difficult
  • Auto center and edge find - internal and external
  • Multi co-ordinate systems (9 work co-ordinates)
  • XYZ simultaneous machining
  • Direct coupled AC servo for X,Y & Z
  • X,Y,Z with precision LM rails and Ballscrew
  • Programmable X/Y/Z erosion axis. (Vertical or Side sparking)
  • Machine Referencing with Pitch Error Compensation
  • Low wear for reducing electrode wear. Effective in rib machining.
  • "Edge control" for corner wear control. Suitable for low current.
Specifications
ParameterDetails
Work Table550 x 300 mm
X Travel250 mm
Y Travel250 mm
Z Travel250 mm
Max job weight400 kg
Max Electrode Weight60 kg
ParameterDetails
Work Table700 x 450 mm
X Travel450 mm
Y Travel350 mm
Z Travel250 mm
Max job weight800 kg
Max Electrode Weight60 kg
Max Job height300 / 400(Optional)
Sample Jobs
