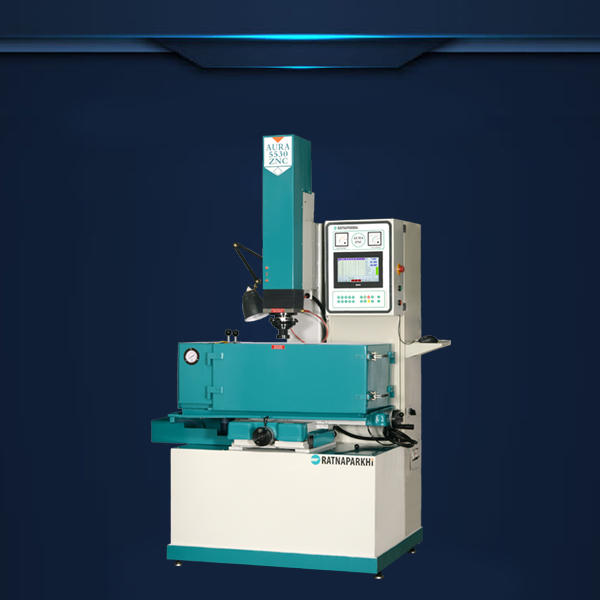

AURA 5530 ZNC

Download Brochure

Video Link

Brief Information

Features
  • High speed Jump
  • Adaptive multi stage anti arc
  • Safe Mode
  • Fuzzy Logic system will auto select best machining parameters in 4 step programming
  • Z axis reference after power on to ensure correct z-axis co-ordinates
  • Ball screw for Z
  • Integral design with compact footprint
Specifications
ParameterDetails
Work tank dimensions (mm)800 X 530 X 300
Table size (mm)550 X 300
T slot (mm)3 X 10
X Axis travel (mm)280
Y Axis travel (mm)200
Z Axis travel (mm)250
Z Axis AC Servo
Max job height (mm)210
Max electrode weight (Kg.)50 Kg.
Max job weight (Kg.)170 Kg.
Machine X & Y AxisLead screw
Machine Z AxisBall screw
Overall machine weight (Kg.)1000 Kg.
Maximum table quill distance (WA) (mm)350
Minimum table quill distance (WA) (mm)110
Machine foot print (mm)1650 X 2175 X 2150

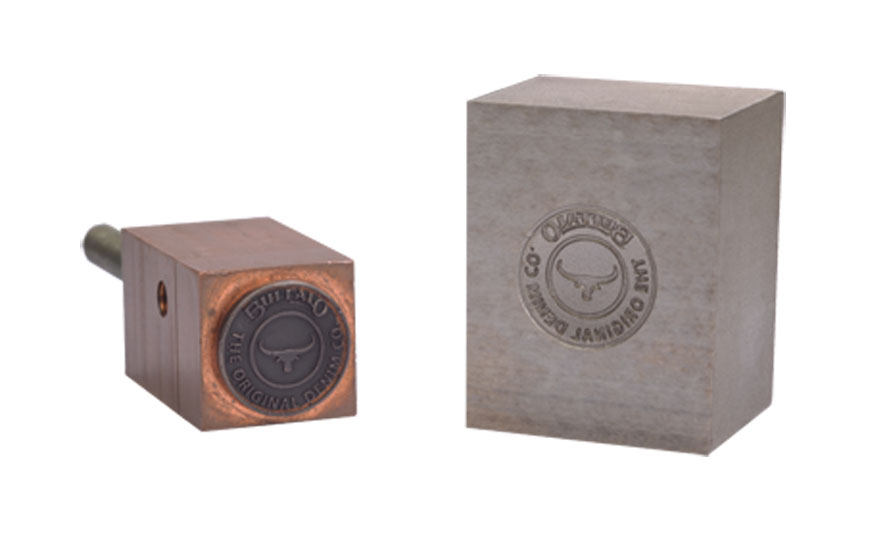

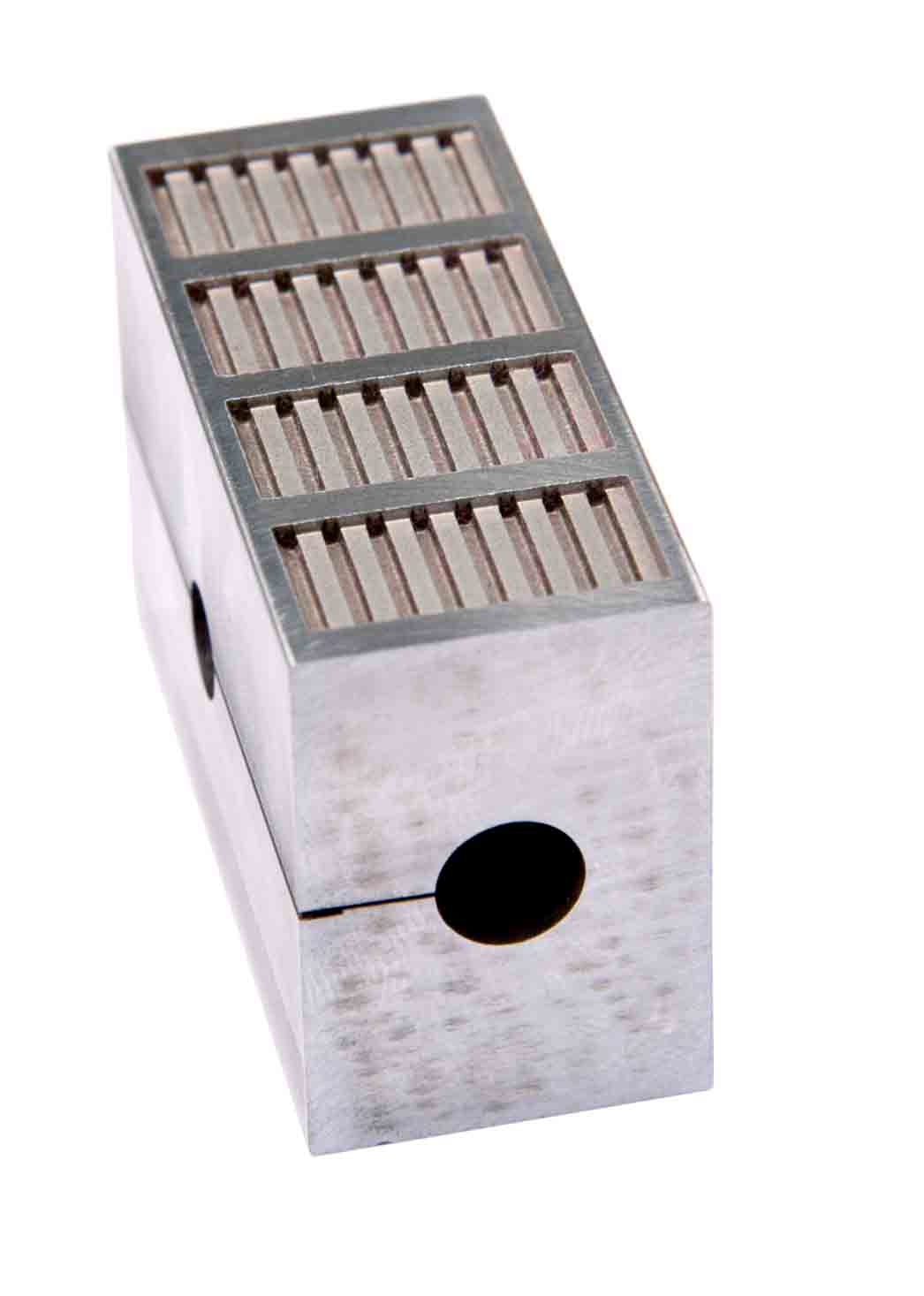

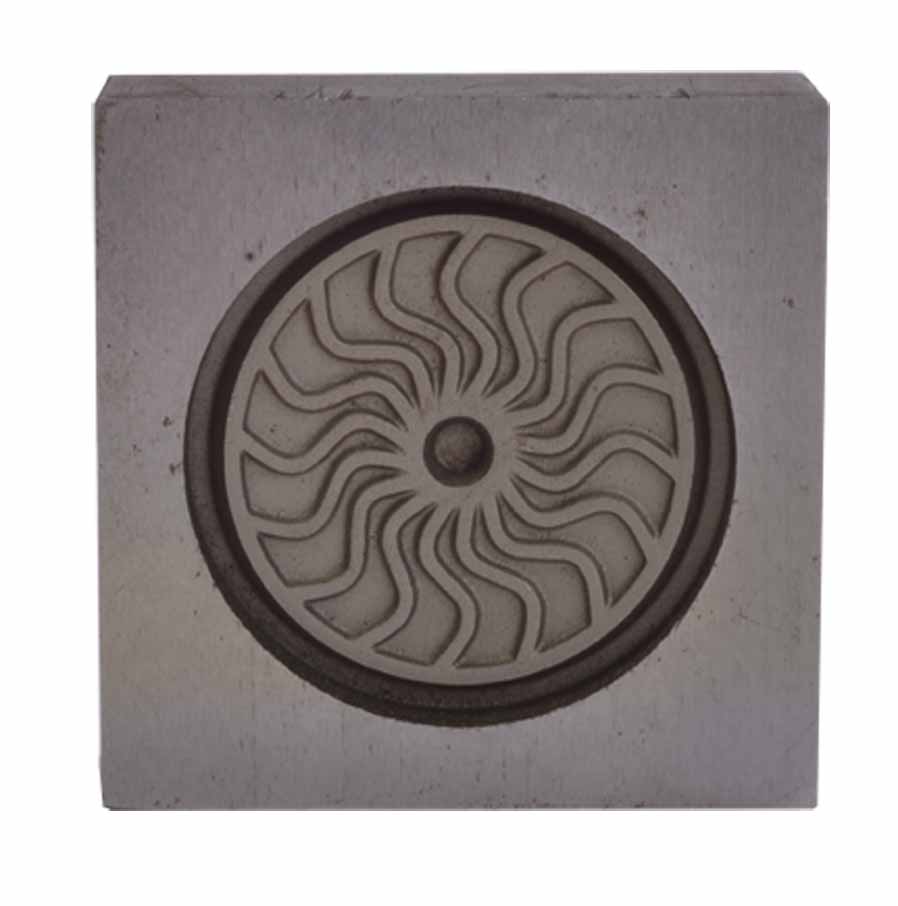

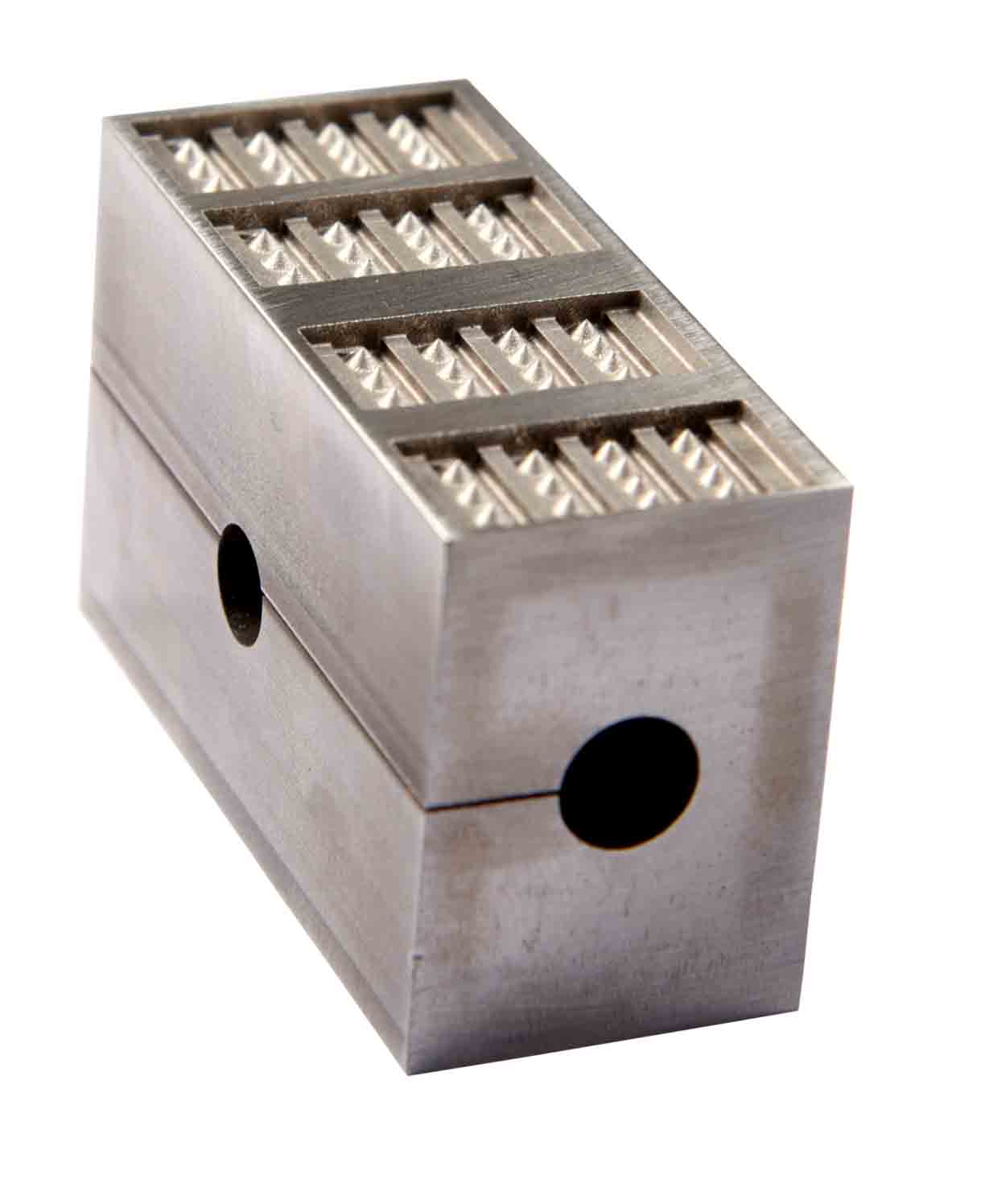

Sample Jobs
