NXG PRO 2
Download Brochure
Video Link
Request Quotation
Please
Sign In
First for Quotation Request
Brief Information
Features
Online offset correction
Motorized Z Axis with LM Guideways
Direct coupled AC Servo motors
Closed loop system
Low running cost
Avg. Cutting speed 120 mm²/min on steel (HcHcr / WPS)
Reusable Molybdenum & Brass wire technology
Precision Ball screws for X , Y Axis
Best surface finish 1.0 to 1.5 μRa.
Inbuilt 4 Axis DRO
Taper angle of ± 5°
Pendent unit with multiple controls
X , Y Axis With LM Guideways
LM Guideways for Drum Assembly
Work Table water guard with door
Specifications
3240 NXG PRO 2
Parameter
Details
Work table size (mm)
400 X 600
X Y Traverse (mm)
300 X 400
Max Z Height (mm)
400
Max Taper angle (Degree)
±5°/100 mm
Max Workpiece weight (Kg.)
300 Kg.
Floor Plan (mm)
2300 X 2800 X 1750

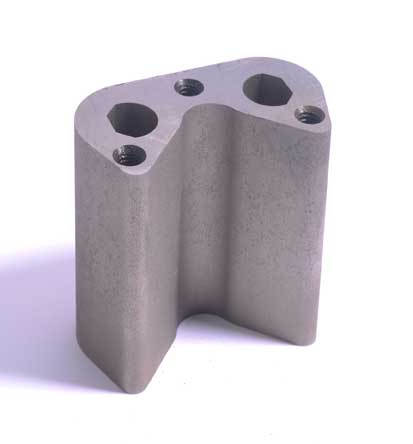

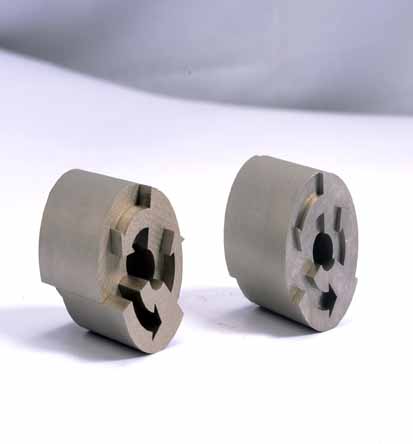

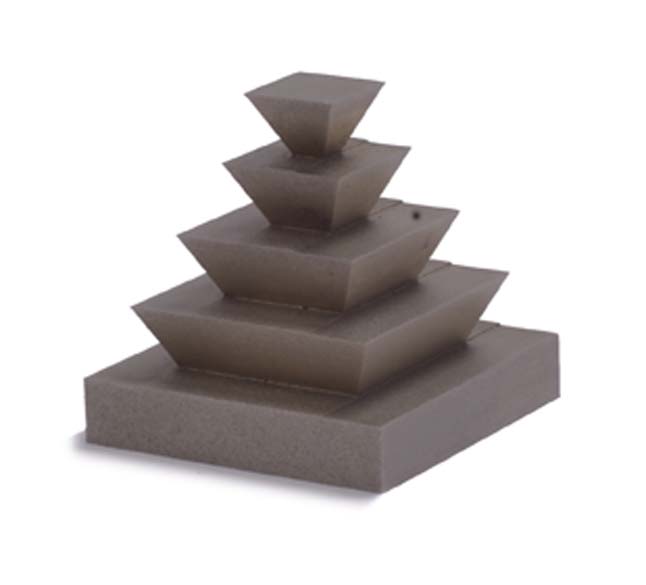

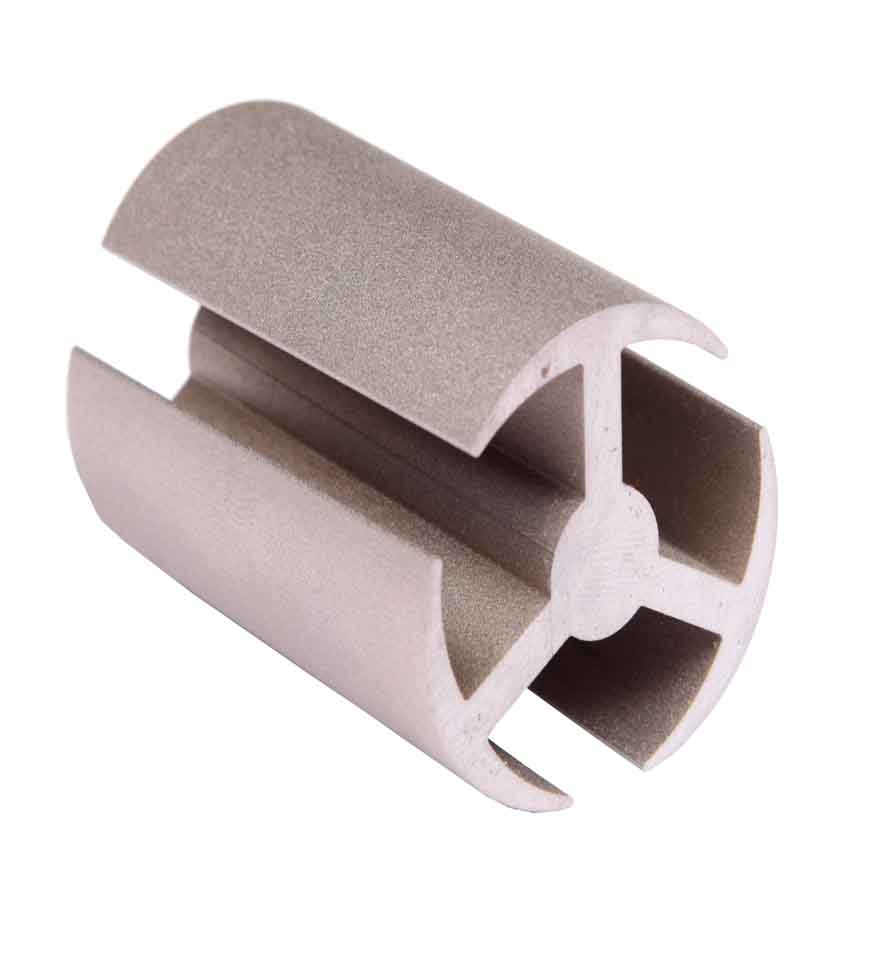

Sample Jobs
